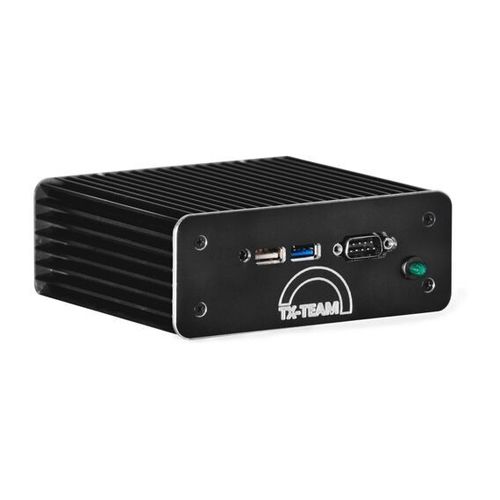

DIN rail PC IS1000

embeddedboxall-in-one

Very compact, dustproof system, available with mobile Intel Pentium, Core i3 / i5 and DIN rail mount. - Industrial use with harsh environmental conditions - Mobile Edge Computing - Industrial Internet of Things applications - ThinClient - In-vehicle measurement data acquisition in the vehicle - Human Machine Interface (HMI) - Digital Signage Player / Visualization - BDE (production data acquisition), e.g. industrial trucks in warehouse logistics - embedded applications - Router/Firewall Features: - Freely configurable in RAM, Storage, CPU - 1x RS232 interface - Huawei 909s-120 LTE Module - DUAL LAN (Realtek GLAN) - WLAN Unex DNUR-S2 300 - Dustproof according to IP protection class 60 - 3 years warranty Type : aluminium profile construction without venting holes, black anodized Dimensions (WxDxH) : 134x108x55 mm Weight : 1,2 kg Cooling: direct attached to chassis Operating condition : 0..50°C / 80% rel. humidity CPU Intel Pentium 3558U / 2x 1.7 GHz Intel i3 5010U / 2x 2.1 GHz Intel i5 5200U / 2x 1.7 - 2.7 GHz RAM 2 GB DDR3L 4 GB DDR3L 8 GB DDR3L Mainboard : customized eNUC platform I/O front (standard) : 1x RS232, 1x USB 3.0, 1x Audio I/O back : 2x HDMI, 2x USB 3.0, 2x RJ45 (Realtek GLAN) I/O internal : internal I/O might be occupied - depending on your configuration 1x mSATA/mPCIe full size, 2x USB 2.0 Storage : 1x 2.5" SSD (Industrial, MLC, 0..+70°C ) or HDD (WD RED) ODD : - Graphics : Intel HD up to 2 independend Displays supported max. Resolution: 3840x2160 px Wireless LAN : Unex DNUR-S2 300 Mbit Dual-Band WLAN module LTE Huawei 909s-1204G LTE
