LCD panel PC / PCAP capacitive touch screen / 18.5" / full HD
I185-J1900

{{requestButtons}}

Characteristics

  • Screen type:

    LCD, PCAP capacitive touch screen

  • Display size:

    18.5"

  • Resolution:

    full HD

  • Processor:

    Intel® Celeron J1900, quad-core

  • Other characteristics:

    fanless, stainless steel, HMI, modular, Windows 7, Windows 10, Linux, embedded, IP65, rugged

  • Applications:

    industrial

Description

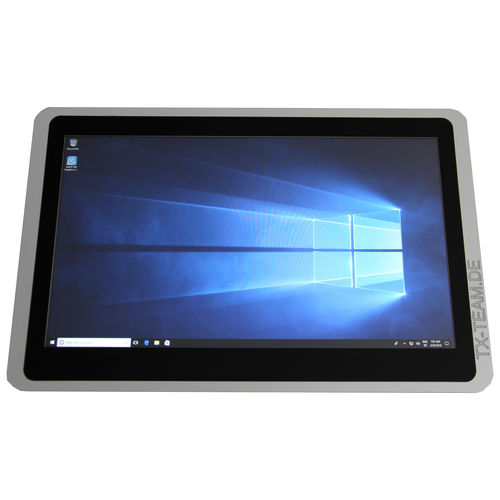

Touchpanel-PC I185-J1900 is IP65 protected, fanless and perfect for a large variety of critical applications such as industrial control, in-vehicle, general HMI and many more.
Featuring a fast quad-core SoC and up to 8GB RAM you can run even cpu - hungry applications and visualisations.

I185-J1900 is based on the I185-1 display and features all it's state-of-the-art features:
- 18.5", Full-HD/60Hz
- 16:9 ratio
- LED backlight
- precise PCAP touch
- glass front
- modular approach

Mechanical
Fanless design
Panel-mount, alternatively for 19"
Dimensions: 482,6 x 311 x 67 mm
Glass - front, aluminium frame + stainless steel chassis
IP65 front
Operating temp. range: -20...+60°C

PC unit
Intel Celeron J1900, 4x 2.00 - 2.42 GHz
up to 8 GB RAM DDR3L
32 bis 256GB industrial mSATA SSD
I/O 2x RJ45 GLAN, 1x USB 3.0, 3x USB 2.0, 1x VGA, 1x HDMI
compatible (among others) to Ubuntu Linux, MS Windows 7 (Embedded), MS Windows 10 (IoT)

Display
18,5", 1920x1080px@60Hz
Brightness: 350cd/m² typ.
Contrast: 1000:1 typ.
I/O: VGA, DVI, Displayport
PCAP Touch

Electrical
Power consumtion: ca. 16,5W
PSU: 12V DC, FSP060-DIBAN2
