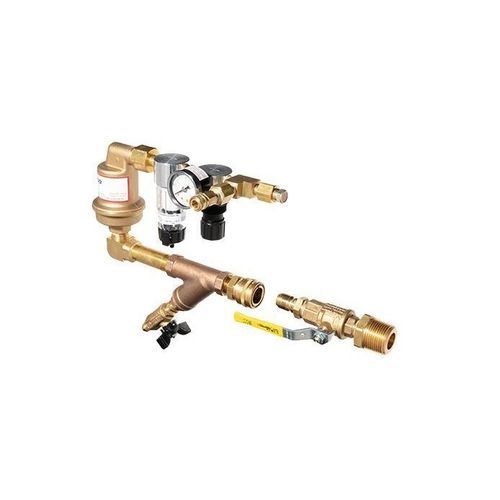

Air vent TAV-D

gasnon-condensable gasautomatic

Overview
The Tyco® TAV-D Dry System Air Vent provides oxygen venting in dry pipe fire sprinkler systems. When a fire sprinkler system is continuously supplied with nitrogen from the Tyco® NG-1 Nitrogen Generator, the TAV-D allows oxygen-rich gas to be vented from the system. Over a short period the device reduces oxygen levels to below 2%.

Designed for use with
NG-1 Nitrogen Generators

Product Details
System Type: Dry, Preaction
Product Type: Oxygen Removal Vent

Features

• Can be installed directly on system risers
• Nitrogen gas sampling port for use with THGA or TSGA Gas Analyzers
• Automatic float shut-off in the event of a system trip
• Must be manually closed after a 14-day nitrogen fill-and-purge process
• Includes a failsafe back-pressure regulator
• Support hanger not required

Benefits

• Reduce corrosion — nitrogen replaces corrosion-causing oxygen
• Extend useful life — lowering corrosion can extend the service life of sprinkler systems
• Minimize business interruption — reduced corrosion decreases the risk of leakage and related downtime

Technical specifications

• Dimensions: 12.0 in. (W) x 4.65 in. (D) x 9.1 in. (H) (305 mm (W) x 118 mm (D) x 231 mm (H))
• Sensor Type: Dry, Preaction
• Service Pressure: Up to 175 psig (12 bar)
• System Connection: 1-inch NPT Male
• Temperature Range: 40°F to 120°F (4.5°C to 49°C)
