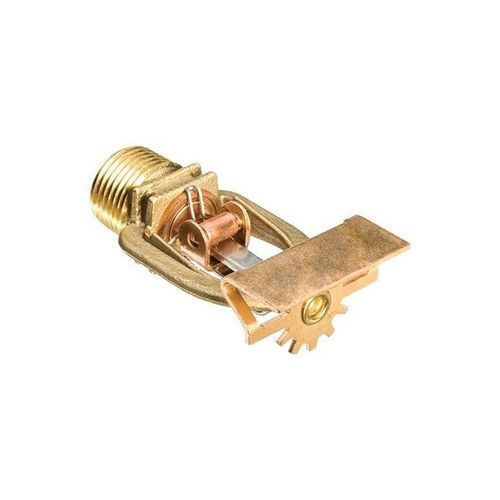

Standard response sprinkler TY-L

uprighthangingfor firefighting

Overview
Standard-response, standard-coverage solder-type spray sprinklers designed for commercial occupancies. Tyco Series TY-L sprinklers are suitable for light, ordinary and extra-hazard occupancies including banks, hotels, shopping malls and offices.

Key product information

• Orientation: Upright, Pendent, Recessed Pendent, Horizontal Sidewall
• K‑Factor: Up to 8.0
• Temperature rating: Up to 280°F (138°C)
• Response: Standard

Features

• UL and C‑UL Listed; FM and LPCB Approved
• Technical data and listing details: see TFP110 for 5.6 and 8.0 K‑factor upright, pendent and recessed pendent models (TY3111, TY3211, TY4111, TY4211, TY4811, TY4911)
• See TFP120 for 5.6 K‑factor horizontal sidewall sprinkler (TY3311)

Benefits

• Flexible: available in multiple finishes and temperature ratings to suit installation requirements
• Effective: designed for reliable performance in commercial fire protection applications
• Trusted performance: Tyco products supported by long-standing industry experience

Technical specifications

• Occupancy type: Light Hazard, Ordinary Hazard, Extra Hazards
• K‑Factor: Up to 8.0
• Listings and approvals: UL and C‑UL Listed; FM and LPCB Approved
• Note: refer to Technical Data Sheet for full details
• SIN numbers: TY3311, TY3111, TY3211, TY4111, TY4211, TY4811, TY4911
• Thread: Up to 3/4‑inch
• Wrench recessed: W‑Type 10
• Wrench: W‑Type 9
