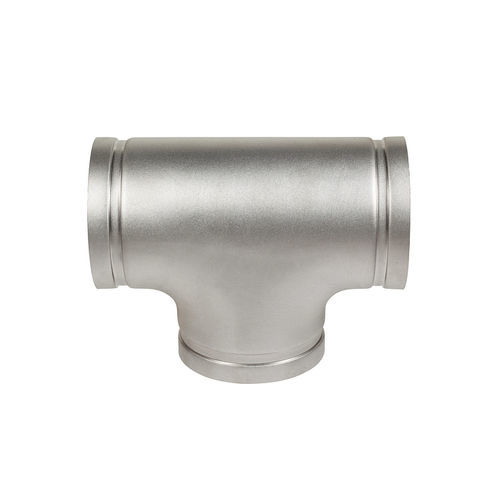

Screw-in fitting Figure 419

T-shaped304 stainless steel316 stainless steel

Overview
Grinnell stainless steel full-flow grooved fittings are manufactured from Type 304 and Type 316 stainless steel to provide lightweight, corrosion-resistant connections for grooved piping systems. The Figure 419 grooved tee enables direction changes, outlet additions, reductions or capping while maintaining full-flow characteristics. Regional distribution is limited to Europe, Middle East and Africa.

Product Details
Product Type: Fitting
Sizes: DN25 to DN300 (1 to 12 in.)
Regional Availability: Europe, Middle East, and Africa only

Features

• Economical and efficient method to change direction or add an outlet to a grooved piping system
• Maximum pressure rating up to 750 psi (52 bar), depending on coupling in use
• Cast grooved design provides full-flow characteristics and minimized pressure loss

Benefits

• Proven performance: Grinnell fittings, couplings and accessories are specified for reliable system operation
• Broad portfolio: Part of the Johnson Controls offering for mechanical and fire protection applications
• Manufacturer support: Backed by Johnson Controls warranty and technical resources

Technical Specification
Pressure Rating: See specific data sheet for rating for coupling in use
Regional Availability: Europe, Middle East, and Africa only
Sizes: DN25 to DN300 (1 to 12 in.)

Model / Technical specifications

• Model: Figure 419
• Product Type: Stainless steel grooved tee (full-flow)
• Material: Type 304 and Type 316 stainless steel
• Sizes: DN25 to DN300 (1 to 12 in.)
• Maximum pressure rating: up to 750 psi (52 bar) (see specific data sheet for coupling in use)
• Regional availability: Europe, Middle East, and Africa only
• Application: Change direction, add outlets, reduce, or cap grooved piping systems
