Lithium battery Moduloo Bx

modularfor AGVCE

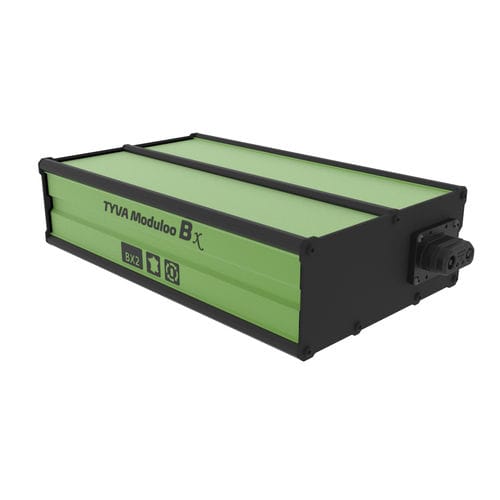

The Moduloo Bx battery is the most versatile heavy-duty, waterproof, and rackable lithium battery in its category. It features an optimized form factor with a height of only 10.3 cm (Non-rackable version: 284.1 x 238.6 x 102.6 mm for the 1 kWh BX1 and 441.1 x 238.6 x 102.6 mm for the 2 kWh BX2; Rackable version: 285.2 x 238.6 x 102.6 mm for the BXR1 and 442.2 x 238.6 x 102.6 mm for the BXR2), making it ideal for integration into technical enclosures, power racks, or space-constrained industrial areas.

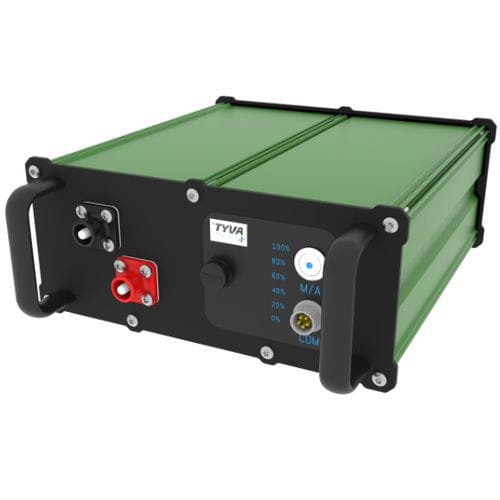

Its robust, IP65 waterproof aluminum casing (7.5 kg for BX1/BXR1 and 12.7 kg for BX2/BXR2), highly resistant to shocks and vibrations, is available in non-rackable (BX) or rackable (BXR) versions. Integration adapts to your needs: the BX version (non-rackable) features Push-Pull power connectors located on the front panel, while the BXR version (rackable) incorporates rear charge/discharge connectivity for direct rack insertion. It also offers a wide choice of configurable front panels (ON/OFF button, bargraph, handle).

Designed and manufactured in France by TYVA Energie (Annonay), it embeds the BMS PRO with an internal static PDU (PDU 1825), ensuring advanced CAN bus 2.0B and Bluetooth communication. It also optionally offers the TYVA Pyro Protection (TPP) fireproofing technology for optimal thermal containment.

Modular and high-performing, it delivers from 1,022 Wh to 2,044 Wh of nominal energy (available in 25.55 V versions from 40 Ah to 80 Ah or 51.1 V versions from 20 Ah to 40 Ah, supporting up to 80 A continuous discharge current) and allows parallel connection of multiple modules to adapt autonomy and power to your system.

Operating temperature range from −20 °C to +60 °C during discharge, CE, RoHS, and UN 38.3 certified for safe transport, it is eco-designed and 100% reconditionable thanks to TYVA Refill cell replacement technology.

Applications: electric vehicles and off-road machinery, industrial robotics and AGV/AMR, rackable power systems, technical enclosures, embedded equipment for defense, railway, and marine sectors.
