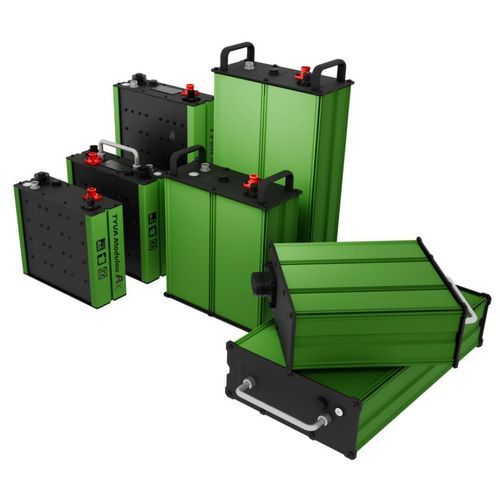

Lithium-ion battery module Moduloo Ax

panelmodularfor drones

Overview
The Moduloo Ax & Bx lithium battery range is designed to provide maximum power in an extremely compact casing. It is one of the lightest solutions on the market. Available in two main versions:

• Moduloo Ax: Ideal for applications where weight and space are critical.
• Moduloo Bx: Versatile, robust, rack-mountable, and IP65-rated.

Design & Architecture
Plug-and-play, they feature a common modular architecture. Whether operating standalone or connected in series and parallel, these solutions adapt to your design constraints. By multiplying the integration possibilities, the Moduloo Ax & Bx can easily be adapted to any footprint. Variants include front-panel connectors and blind-mate (rack) connectors and multiple front-panel options (A, B, C, D for non-rack versions; E, F, G, H for rack versions).

Certifications & Compliance
The Moduloo Ax & Bx range is RoHS, CE and UN 38.3 certified. Certified to ensure safe, fast and economical transport and compliance with European requirements.

Key Features

• High energy density in compact format.
• Lightweight construction (one of the lightest solutions on the market).
• Modular architecture: standalone or series/parallel configurations.
• IP ratings: Moduloo Ax typically IP54 (ultra-compact), Moduloo Bx engineered to IP65 (robust, waterproof).
• Communication options: CAN 2.0, SMBUS & I2C (depending on model).
• Sustainability: fully compatible with replaceable-cell reconditioning technology (TYVA Refill).
• Designed for integration (blind-mate or front-panel integration, multiple front panel options, HMI and custom interfaces available).

Standard Moduloo Ax - Models (table representation)
Part number | Config | Nominal energy | Nominal capacity | Charge voltage | Charge / Discharge max current | Nominal voltage | Data | Format | Dimensions (mm) | Weight
TYREB_LC_A5P_X_14V | 4S20P | 980 Wh | 67 Ah | 16,8 V | 25 A / 25 A | 14,6 V | SMBUS et I2C | A5+ | 208 x 220 x 77 | 4,8 kg
TYREB_LC_A4P_X_14V | 4S35P | 1710 Wh | 117 Ah | 16,8 V | 25 A / 25 A | 14,6 V | SMBUS et I2C | A4+ | 323 x 220 x 77 | 8,5 kg
TYREB_PR_A5B_X_25V | 7S10P | 860 Wh | 33,5 Ah | 29,4 V | 17 A / 80 A | 25,55 V | CAN 2.0 | A5 | 188 x 220 x 77 | 4,2 kg
TYREB_PR_A4P_X_25V | 7S20P | 1710 Wh | 67 Ah | 29,4 V | 34 A / 90 A | 25,55 V | CAN 2.0 | A4+ | 323 x 220 x 77 | 8,5 kg
TYREB_PR_A5B_X_51V | 14S5P | 860 Wh | 16,75 Ah | 58,8 V | 8,5 A / 40 A | 51,1 V | CAN 2.0 | A5 | 188 x 220 x 77 | 4,2 kg
TYREB_PR_A4P_X_51V | 14S10P | 1710 Wh | 33,5 Ah | 58,8 V | 17 A / 80 A | 51,1 V | CAN 2.0 | A4+ | 323 x 220 x 77 | 8,5 kg
Note: "X" indicates choice of front panel from A, B, C to D for non-rackable versions.

Standard Moduloo Bx - Models (table representation)
Part number | Config | Nominal energy | Nominal capacity | Charge voltage | Charge / Discharge max current | Nominal voltage | Rackmount Version | Dimensions (mm) | Weight
TYREB_PR_BX1_X_25V | 7S8P | 1022 Wh | 40 Ah | 29,4 V | 17 A / 80 A | 25,55 V | No | 239 x 239 x 103 | 7,5 kg
TYREB_PR_BXR1_X_25V | 7S8P | 1022 Wh | 40 Ah | 29,4 V | 17 A / 80 A | 25,55 V | Yes | 239 x 239 x 103 | 7,5 kg
TYREB_PR_BX1_X_51V | 14S4P | 1022 Wh | 20 Ah | 58,8 V | 8,5 A / 40 A | 51,1 V | No | 239 x 239 x 103 | 7,5 kg
TYREB_PR_BXR1_X_51V | 14S4P | 1022 Wh | 20 Ah | 58,8 V | 8,5 A / 40 A | 51,1 V | Yes | 239 x 239 x 103 | 7,5 kg
TYREB_PR_BX2_X_51V | 7S16P | 2044 Wh | 80 Ah | 29,4 V | 32 A / 60 A | 25,55 V | No | 396 x 239 x 103 | 12,7 kg
TYREB_PR_BXR2_X_51V | 7S16P | 2044 Wh | 80 Ah | 29,4 V | 32 A / 60 A | 25,55 V | Yes | 396 x 239 x 103 | 12,7 kg
TYREB_PR_BX2_X_51V (alt config) | 14S8P | 2044 Wh | 40 Ah | 58,8 V | 17 A / 80 A | 51,1 V | No | 396 x 239 x 103 | 12,7 kg
TYREB_PR_BXR2_X_51V (alt config) | 14S8P | 2044 Wh | 40 Ah | 58,8 V | 17 A / 80 A | 51,1 V | Yes | 396 x 239 x 103 | 12,7 kg
Note: "X" indicates choice of front panel; rackable versions available (blind-mate connector).

Applications

• Robotics and drones
• Defence and military
• Electric mobility (AGVs, EVs)
• Energy storage and off-grid applications
• Street furniture, marine, events, film production, construction and other integration-critical systems

Derivative & Custom Products
The range can be customized: custom voltages, capacities, discharge currents, specific HMI, DC/DC conversion, remote switches, special connectors, tailor-made enclosures and front panels, integrated thermal management (heaters), upgraded watertightness, sub-assemblies and Corepacks. Dedicated R&D and integration support are available to adapt power and interfaces to customer systems.

Caractéristiques / spécifications techniques

• Series name: Moduloo Ax & Bx
• Manufacturer / Brand: TYVA Energie
• Nominal voltages (Ax): 14 V, 25 V, 51 V
• Nominal voltages (Bx): 25 V, 51 V

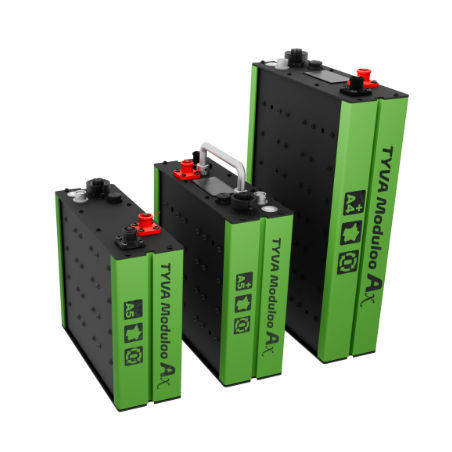

• Form factors (Ax): A5, A5+, A4+
• Form factors (Bx): Bx1 & Bx2 (front panel), BxR1 & BxR2 (blind-mate / rack)
• IP rating: Ax typical IP54 (ultra-compact), Bx engineered IP65 (robust, waterproof)
• Lifecycle: 700 to 5,000 cycles (depending on temperature, depth of discharge and operating power)
• Communications: CAN 2.0, SMBUS & I2C (model dependent)
• Sustainability: Compatible with replaceable-cell reconditioning (TYVA Refill)
• Certifications: CE, RoHS, UN 38.3
• Representative model examples (energy / capacity / dims / weight): see table entries above for part numbers such as TYREB_LC_A5P_X_14V (980 Wh, 67 Ah, 208 x 220 x 77 mm, 4.8 kg) and TYREB_PR_BX2_X_51V (2044 Wh, 80 Ah, 396 x 239 x 103 mm, 12.7 kg).
• Max discharge currents vary by model: examples include up to 90 A on some Ax energy-capacitive variants and up to 80 A on some Bx variants (refer to model table entries for exact values).
• Front panel options: multiple front panels (A, B, C, D) for non-rack versions and E, F, G, H for rackable versions; some front-panel options include LCD, bargraph, handle, On/Off button combinations.
