Lithium-ion battery system Moduloo Ex

rectangularwheelmodular

Presentation
The Moduloo Ex range comprises ergonomic, weather-resistant portable electric stations designed to deliver power and autonomy for professional applications (film, construction, events, off-grid, food trucks...). These solutions (PowerBox and PowerCase) provide a silent, fuel-free alternative to traditional generators without direct exhaust or odor.

Versions

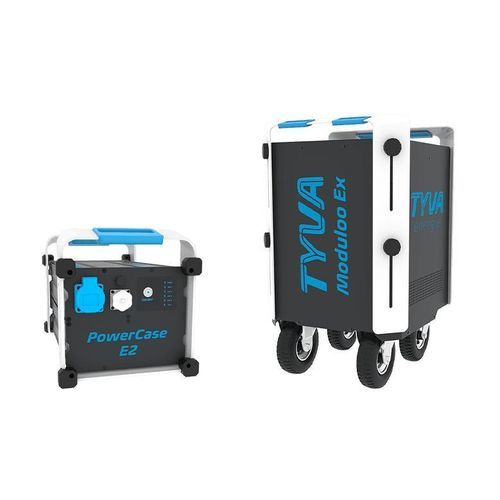

• PowerBox – all-terrain portable power station in a sealed aluminium enclosure, built for robustness and modularity.
• PowerCase – compact, ergonomic mobile battery for portable needs (small portable station format).

Key points

• Ergonomic and mobile design: handles, telescopic arch and all-terrain wheels (single-person transport for some references).
• Weather-resistant and durable enclosures (aluminium housing for PowerBox).
• No fuel: silent operation (< 60 dB at 1 m) with zero direct emissions.
• Compatibility with photovoltaic charging (plug-and-play solar kit) to extend autonomy.
• Integrated Moduloo Ax battery technology, BMS and gateway for management and paralleling.

Applications

• Off-grid (mobile shops, food trucks)
• Events (concerts, trade shows, outdoor events)
• Film and audiovisual (silent power for shoots and sets)
• Construction and trades (portable site batteries)
• Remote sites and mobile use cases

Certifications

• UN 38.3 (safe transport of lithium batteries)
• CE (European conformity)
• IEC 62619 (safety for industrial applications)

Characteristics / technical specifications

• General – Moduloo Ex range: Moduloo Ax battery technology, sealed enclosures, intelligent monitoring via BMS, silent operation (< 60 dB at 1 m), modular and refurbishable design.
• Paralleling and modularity – Parallel connection of PowerBox stations via TYVA gateway: ability to connect 6 to 10 systems in parallel; cumulative nominal capacity up to 66 kWh; cumulative output power up to 60 kW depending on configuration.
• PowerBox E5 (example): Dimensions 962 x 650 x 590 mm
  Weight: 70 kg
  Nominal capacity: 6 kWh
  Output voltage: 220 VAC
  Output power: 5.5 kW
  Recommended charge time: 4 hours
  Ingress protection: IP54
• Estimated autonomy PowerBox E5 (indicative):
  300 W (sander): 20 hours
  400 W (work light balloon): 15 hours
  800 W (mixer): 7.5 hours
  1.5 kW (angle grinder / circular saw): 4 hours

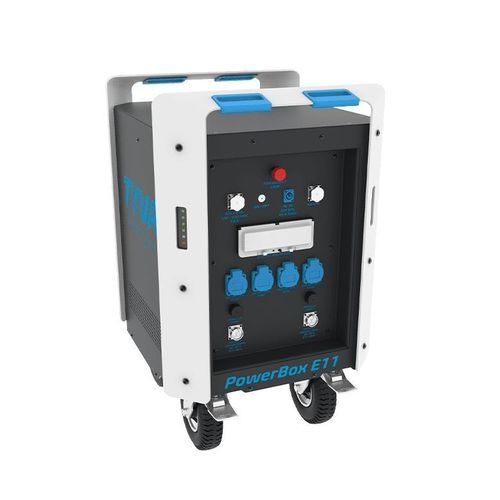

• PowerBox E11 (example): Dimensions 962 x 650 x 590 mm
  Weight: 110 kg
  Nominal capacity: 11 kWh
  Output power: 11 kW
  Recommended charge time: 4 hours
  Ingress protection: IP54
• Estimated autonomy PowerBox E11 (indicative):
  400 W (work light balloon): 27.5 hours
  800 W (mixer): 13.75 hours
  2 kW (jackhammer): 5.5 hours
  3 x 800 W (cinema LED floodlights Skypanel X): 4 hours
  11 kW (cinema HMI M90 + EB6/9): 30 minutes
• PowerCase E2 (example): Dimensions 455 x 268 x 282 mm
  Weight: 19.8 kg (< 20 kg)
  Nominal capacity: 2 kWh
  Nominal voltage: 220 V
  Peak discharge power: 3 kW
  Ingress protection: IP54
• Estimated autonomy PowerCase E2 (indicative):
  300 W (sander): 6.5 hours
  400 W (work light balloon): 5 hours
  1.5 kW (angle grinder / circular saw): 1 hour
  3 kW (welding machine): 15 minutes
• Solar charging – Compatible with photovoltaic panels and plug-and-play solar kit to extend autonomy for mobile use.
• Safety and durability – Refurbishable solutions, monitoring systems, designed for secure transport and compliance with current standards.
