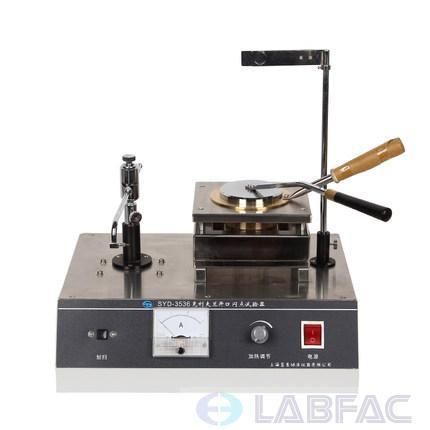

Flash point tester PT-SYD-3536

for petroleum productsbenchtop

Summary This instrument is designed and made as per standards GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils. Main technical features - It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable. It can meet requirements of test. - The instrument adopts desktop structure. The stainless-steel working table and furnace shell make it beautiful and elegant. - The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas. - It is equipped with flame extinguishing cover which accords with requirements of test. Main technical specifications - Power supply: AC (220±10%) V, 50Hz. - Heating device: Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W. - Test flame applicator: It applies the test flame automatically. - Thermometer: (-6～400) ℃. It is the same as thermometer ASTM 11C. - Igniting device: (1) Ignition source: coal gas (or civil gas) (2) Flame diameter is 3.2mm～4.8mm - Ambient temperature: (-10∼50) ℃ - Relative humidity: ≤85% - Maximum power consumption: 650W - Dimension: 350mm×290mm×350mm (thermometer is not included) Accessories 1. Main unit - Set - 1 2. Cleveland oil cup - Piece - 1 - We can provide more if you required. 3. Ignition device - Set - 1 4. Thermometer - Piece - 1 - -6℃～400℃, scale division is 2℃ 5. Thermometer holder - Set - 1 6. Fuse 5 A (Φ5×20) - Piece - 2 7. Latex tube Φ6 - Meter - 1.5 - Could not be used as coal gas tube 8. Joint for coal gas tube - Piece - 1 - Connect coal gas tube and latex tube 9. Extinguishing cover - Piece - 1 Technical characteristics / specifications - Model: PT-SYD-3536 - Tester method: ASTM D 92 Standard Test Method - Thermometer: -6～400 ℃ - Maximum power consumption: 650W
