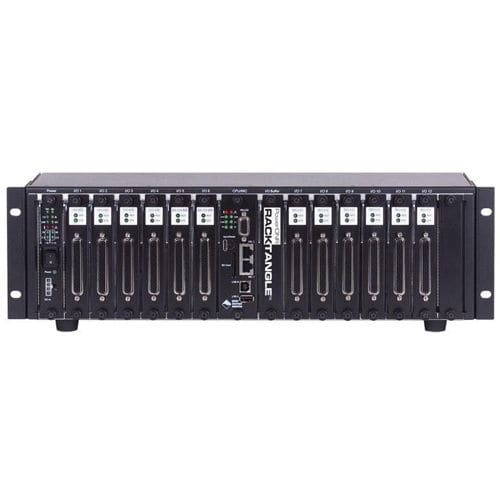

Rack-mount chassis DNR-12-1G-02

compact3U12 slots

Compact (3U), 12-slot, rugged, Gigabit Ethernet Data Acquisition and control rack FEATURES 3U Gigabit Ethernet Data Acquisition and control rack. Allows the installation of up to 12 I/O boards Over 30 different I/O boards available Front-loading I/O boards for rapid reconfiguration Two independent Gigabit Ethernet Interfaces with independent IP addresses Dual USB 2.0 ports (one controller and one slave) Inter RACK Sync Interface Compact: 3U rack (5.25" x 6.2" x 17.5") Up to 300 A/D, 576 DIO, 384 D/A, 144 ARINC-429 channels per rack Rugged: 3 g Vibration, 50 g Shock, -40 to +70 °C Real-time: 1000 I/O scans in < 1 millisecond Complete Windows, Linux and RT OS support LabVIEW™, MATLAB support and more The RACKtangle is an ideal substitute for VME technology in data acquisition and control applications. It is smaller, more modern and lower cost. The RACKtangle is also an ideal choice for a myriad of Ethernet data acquisition and control applications where small footprint and high performance are desired. The DNR-12-1G RACKtangle chassis is a compact (3U), rugged Ethernet based data acquisition and control I/O rack. Though the backplane electronics are identical to our popular PowerDNA Cube series, the PowerDNR RACKtangle series provides two Gigabit Ethernet interfaces and provides slots for up to 12 I/O boards, allowing the I/O boards to be quickly and easily installed and removed directly from the front of the rack. These capabilities dramatically increase performance and simplify system reconfiguration when necessary. The backplane within the rack contains no active electronic components, ensuring the rack itself has an almost unlimited MTBF (mean time between failures).
