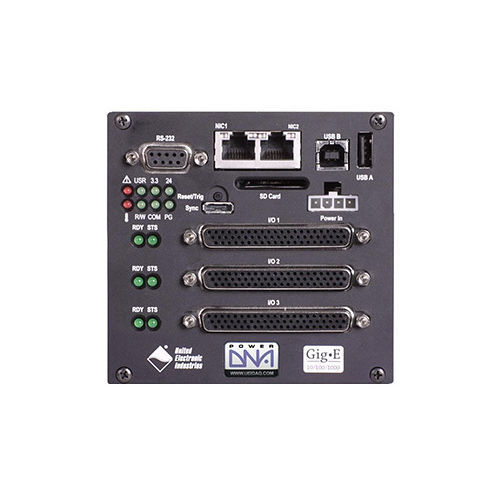

Ethernet programmable automation controller UEIPAC 300-1G-02-08-00-PA

real-time

The UEIPAC 300-1G offers an unprecedented combination of flexibility, high performance, low cost, and small size. The unit is an ideal solution in a wide variety of measurement and control applications including: Temperature control, Remote vehicle control (UAV and ULV), Hardware-in-the-loop (HIL), and more. The UEIPAC is also an ideal solution for a host of embedded DAQ applications as it allows systems to be developed without the cost or the additional space required by an external host computer. Each UEIPAC 300-1G Cube contains the PowerPC processor preloaded with the standard Linux operating system (currently 2.6.x). It also contains dual Gigabit Ethernet NIC ports, serial port, inter-cube sync interface, and 3 I/O slots. Configure your PAC by selecting the I/O boards required to match your application. With over 80 different I/O boards available, there's sure to be a configuration to meet your needs. A key advantage of the UEIPAC is its standalone application deployment. In PowerDNA systems, the VxWorks application is written for and runs on a host PC that is connected to one or more UEI chassis via Ethernet. In UEIPAC systems, the VxWorks application runs directly on the UEI RACK or Cube. There is no need for a separate host PC, though you can certainly connect one in a monitoring or supervisory role. The new VxWorks support allows these applications to be developed and run in VxWorks. This allows smaller, faster, more reliable, and higher performance systems. It also eliminates the cost of a dedicated host PC and guarantees long-term availability of the identical hardware. This is critical when certifying products through CE or FDA, etc.
