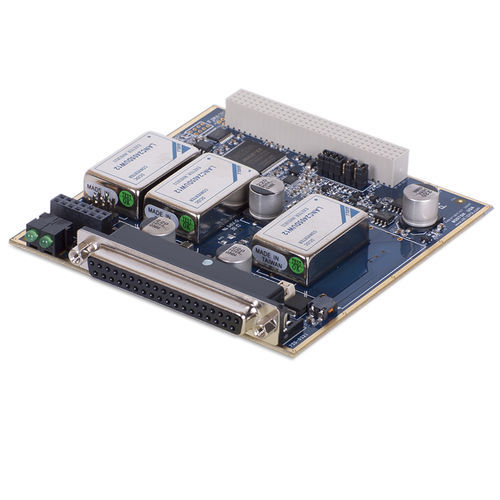

I/O converter card DNx-PC-910 series

The DNx-PC-910 provides external power to various sensors and signal conditioning when required by your application. The 91x series may also be used to provide power to the various DNx series I/O boards requiring external power. The DNAversion is designed for use in UEI’s “Cube” chassis while the DNR series is for use in the RACKtangle chassis form factors. The DNx-PC-91x series is fully backward compatible with the DNx-PC-90x series boards. The DNx-PC-910, 911, 912 and 913 are designed to provide output voltages of ±10 VDC, ±15 VDC, +24 VDC and ±45 VDC respectively.Input power for the boards is provided by the internal Cube or RACKtangle by default, but an external power supply* may be used to power the units. The units are designed to automatically detect the presence of an external supply and use power from it when available. Outputs may be turned on and off under software control (default isOn). The boards provide a read-back capability of the input voltage allowing the application to ensure acceptable input voltage levels. All connections are through a 37-pin D female connector. The pinout oft his connector is identical to that of the earlier DNA-PC-90x series with the exception that pins designated as “NC” on the 90x series are now used as the connections to external power when used.
