12-channel, current input board, 16-bit, 16 kS/s aggregate, analog input, data acquisition board
Features
12-channel, 16-bit, 16 kS/s aggregate, analog input, data acquisition board
12 differential current inputs
16-bit resolution
Max sampling rate to 16 kS/s
Autocalibration
Input ranges +/- 150 mA, ±15 mA, ±1.5 mA (covers industrial ranges 0-20mA and 4-20mA)
Analog front end isolated from digital circuitry

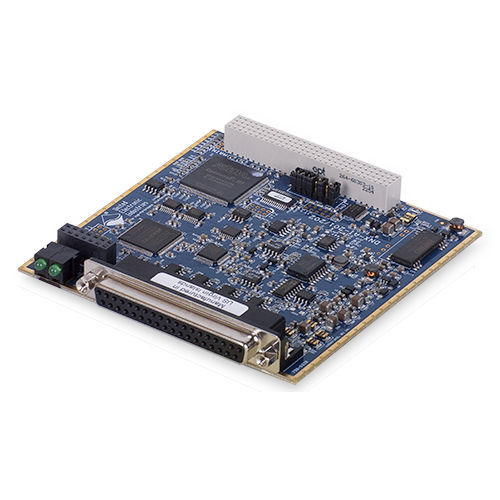

The DNA/DNR-AI-202 is a 12-channel current input A/D board. The DNA boards are compatible with all of our popular “CUBE” series chassis while
the DNR-series boards are used in the RACKtangle I/O series chassis. Both versions provide identical electrical specifications and performance including
three current input ranges, 16-bit resolution and 16 kS/s resolution. The AI-202 data acquisition boards are fully isolated from the PowerDNA cube and
are ideal A/D boards for a wide variety of high speed, high resolution current measurement applications.
