Up-down counter DNx-CT-601 series

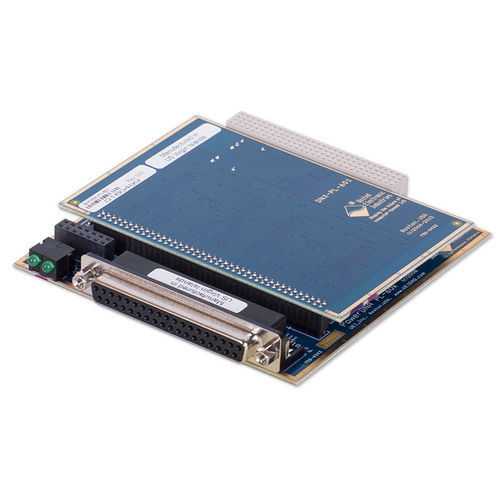

The DNx-CT-601 is a general-purpose counter/timer board (layer) that provides eight independent 32-bit channels, each one having overvoltage protection and optoisolation. They perform up/down counting in a number of flexible modes using values from a Load Register and two Compare Registers. They can act as an event counter, perform width/period measurements and run in quadrature-encode mode where the user sets the direction of the counting. For output modes, the board offers 1-shot and Universal PWM operation. Features 8-channel, 32-bit counter/timer/PWM board 8 independent counter/timer units 32-bit prescaler per channel Multiple period counter with accumulated results Works with either internal (66 MHz) or external (max 16.5 MHz) timebases 256 x 32-bit Input FIFO and 256 x 32-bit Output FIFO on each counter Debouncing/glitch removal on external clock and gate inputs 8 Counting modes
