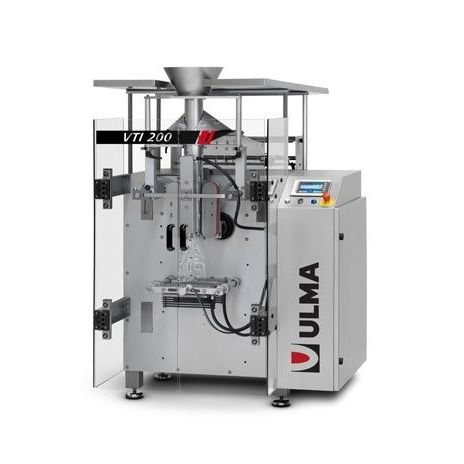

Vertical bagging machine VTI 200

VFFSvacuumform fill seal

Short description
Vertical form-fill-seal (VFFS) machine for three-seal bags. Designed for intermediate-speed production up to 70 cycles/min with pneumatic horizontal sealing and AC-driven draw-down belts.

Description
The VTI 200 is built for packaging a wide range of products where simplicity, reliability and ease of use are required. Pneumatic operation of the cross-seal jaws combined with an AC motor driving the draw-down belts gives the machine flexibility across product types and production environments. Compact frame, robust mechanical and electrical components, and low maintenance needs support continuous intermediate-speed operation. Machine control is provided via a 5" colour touchscreen with integrated industrial PC for quick format changes and recipe storage.

Standard features

• Pneumatically operated cross-seal jaws with obstruction detection.
• Draw-down/pulling belts driven by AC motor and universal joints.
• Closed frame construction for component protection.
• One-piece film former (conformer).
• Industrial PC with 5" colour touchscreen (B&R).
• Program memory for up to 100 items.
• Machine functions and parameter adjustments accessible on-screen.
• Automatic monitoring of sealing temperature and air pressure.
• Detection of horizontal seal obstruction/product trapping.
• Key-controlled access levels for operators.
• Automatic end-of-film detection and motorized film roll centering.
• Interfaces for peripheral equipment and LAN Ethernet connectivity.
• Designed and manufactured to comply with 98/37/CEE safety requirements.

Most common options

• Stainless steel execution.
• Vacuum table for film splicing for fast roll changes.
• Printed-film registration (photocell) system.
• Gas injection (MAP) system.
• Vacuum belt film feed system.
• Special PE jaws for high-speed applications.
• Motorised film tracking and film tension control.
• Automatic self-centering film roll.
• Static eliminators (antistatic units).
• Bag vibrator to settle product.
• Flat-bottom bag option (centre or side seal).
• Easy-open knife shapes.
• Strings, double-bag or chain/bunch packing.
• Eurolock and handle punching systems.
• Coders, printers and labellers.
• Product discharge belts and other downstream conveyors.

Technical specifications

• Machine type: Vertical form-fill-seal (VFFS) — three-seal bag.
• Model: VTI 200.
• Maximum production speed: up to 70 cycles/min (depending on product and configuration).
• Sealing system: Pneumatic cross-seal jaws with obstruction detection; monitoring of sealing temperature and air pressure.
• Film handling: One-piece film former; motorized centering; end-of-film detection; options for vacuum splicing and vacuum belt feed; motorised tracking and tension control.
• Drive: AC motor-driven draw-down belts with universal joints.
• Control: Industrial PC with 5" colour touchscreen; recipe memory for 100 items; user-level password protection.
• Construction: Closed frame; optional stainless steel version.
• Options: MAP, printed-film registration, coders/printers, labellers, flat-bottom solutions, antistatic units, vibrators, automatic roll centering.
• Standards: Designed and manufactured in accordance with Directive 98/37/CEE.
