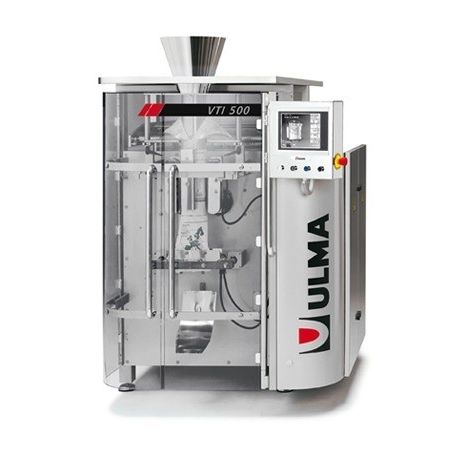

Vertical bagging machine VTI 500

VFFSform fill sealservo-driven

Description
The VTI 500 is a vertical form-fill-seal (VFFS) machine for intermittent production of three-seal bags. It is designed to pack liquids, pastes, powders, granulated foods, IQF frozen products, snacks, vegetables and a wide range of particulate or non-compact products. The machine architecture focuses on hygienic design, simple maintenance and efficient operator access; controls and drives centralise operation and speed up format changes.

Standard features

• Servo-driven film transport and servo cross-seal jaws for precise film handling
• Painted frame finish (RAL 9006 / RAL 9007) with closed-structure construction
• Pneumatic chucks on film roll holders and motorized centering
• One-piece film former
• Industrial PC with colour touchscreen (B&R 10") and recipe storage for 100 items
• Touchscreen adjustment of sealing time, temperature and pressure for horizontal jaws
• Key-controlled access levels for operator/user instruction
• Motorized film unwind with tension control and automatic end-of-roll detection
• Precision bag-length control at low and high speeds
• Automatic detection of sealing temperature or pneumatic pressure irregularities
• Easy interface for peripheral equipment integration
• Designed and manufactured to meet 98/37/EEC safety requirements

Most common options

• Stainless-steel (AISI) version
• Left-hand electrical cabinet for dual-machine layout
• Vacuum splicing table for quick roll change
• Double film reel holder with automatic reel change
• Printed-film registration system
• Gas injection (MAP) system
• Vacuum-belt film feed and perforated-belt film handling
• Special PE jaws for high-speed applications
• Impulse or ultrasonic sealing systems
• Motorised film tracking and tension control (Autotracking)
• Static eliminators and bag vibrator
• Flat-bottom pack options (center or side seal), easy-open knife shapes
• Eurolock, hang hole and handle punching systems
• MODEM connection for remote diagnostics and ONLINE analysis
• Coders, printers, product discharge belts, zipper applicators, integrated clipper

Technical specifications

• Machine type: Vertical form-fill-seal (VFFS), intermittent, three-seal bags
• Intended products: liquids, pastes, powders, granulates, IQF frozen products, snacks, vegetables and particulate products
• Drive & control: Brushless dynamic drives; servo-driven film transport and servo cross-seal jaws; Industrial PC with colour touchscreen (B&R 10")
• Programming: Touchscreen recipe programming; storage for 100 items; adjustable sealing time, temperature and pressure; multi-level access
• Film handling: One-piece former; motorized unwind; tension adjustment; auto end-of-roll detection; optional printed-film registration
• Bag control: Precise length control at variable speeds; options for flat bottom, centre/side seal, zippers, double-bag or string options
• Auxiliaries & integration: Easy interface with peripherals; product discharge conveyors; options for vibrators and feeding systems
• Packaging atmosphere: MAP gas injection and vacuum splicing/feeding options
• Sealing: PE jaws for high speed, impulse/ultrasonic sealing options
• Materials: Standard painted construction; stainless-steel option available
• Diagnostics & safety: Automatic fault detection for temperature/pressure; complies with 98/37/EEC
• Connectivity: MODEM/remote analysis option; coders and printers integration
