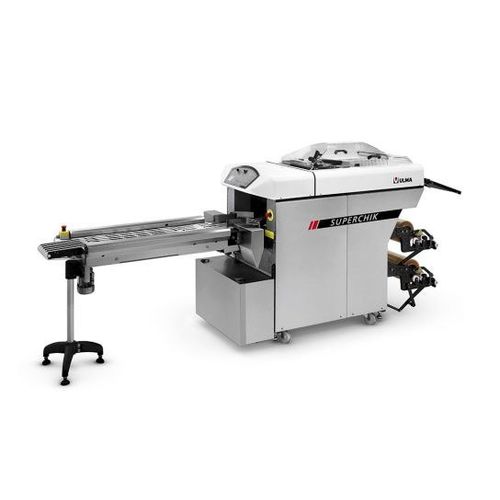

Turntable stretch wrapper SUPER CHIK

automaticfor the food and beverage industrytray

SHORT DESCRIPTION
Automatic stretch film wrapper designed for packaging products in preformed trays. Suitable for supermarkets and central packaging facilities handling meat, poultry, fish and produce.

DESCRIPTION
High-performance automatic wrapper for tray packaging with models adapted to different production volumes. The machine offers automatic size detection or manual adjustment, automatic or manual film length and width selection, and can handle PVC, polyethylene and polyolefin films. Built for continuous production with easy operation, maintenance access and sanitary design options.

KEY HIGHLIGHTS

• Up to 60 packs/min
• Automatic size recognition or manual adjustment
• 1 or 2 film rolls with automatic roll selection
• 4-way film stretch with lateral pre-stretch
• Engineered for duty and corrosion resistance

TECHNICAL FEATURES

• 1 or 2 film rolls with automatic roll selection
• Automatic recognition of tray dimensions or manual setting
• Automatic or manual selection of film length and width
• Universal elevator for tray handling
• Self-diagnostic control panel
• Film tension control and forward/reverse jog capability
• 4-way film stretch with lateral pre-stretch
• Temperature control for the sealing belt
• Over-size package detector
• Mechanical torque limiter
• Safety guards and devices to international standards
• Heavy-duty construction with corrosion-resistant materials; USDA-approvable finishes

OPTIONALS

• Automatic infeed conveyor with tray centering device
• Extended infeed conveyors
• Centralized lubrication
• Sanitary clean-out tray
• Gravity or motorized exit conveyors: in line, 90°, 180°
• Additional 1 m sealing device
• Automatic image-centering device for printed films (one or two rolls)
• Printed band attachment
• Transparent tray detection kit
• Sealer cooler
• Other customer-specific options

TECHNICAL SPECIFICATIONS

• Application: wrapping products in preformed trays for supermarkets and central processing facilities (meat, poultry, fish, produce)
• Maximum speed: up to 60 packs/min (model dependent)
• Supported film types: PVC, polyethylene, polyolefins
• Film rolls: 1 or 2 with automatic roll selection
• Tray handling: automatic dimension recognition or manual adjustment
• Film handling: automatic/manual length and width selection; film tension control; 4-way stretch
• Construction: heavy-duty, corrosion-resistant materials; sanitary options available; USDA-compatible finishes available
• Controls & safety: self-diagnostics, temperature control for sealing belt, oversize detector, international safety guards
• Benefits: high throughput, versatility for different tray sizes and film types, reduced film consumption through 4-way stretch
