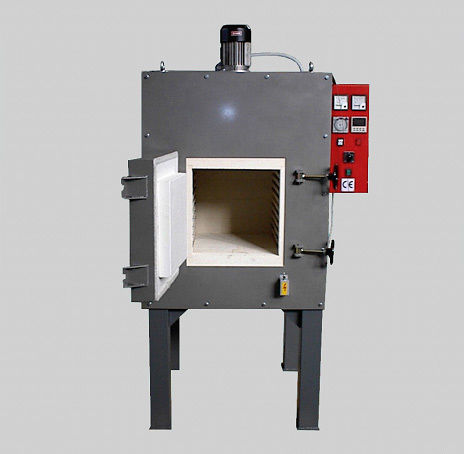

Chamber furnace FTT

heat treatmentelectricnatural convection

Product overview
The FTT series heat treatment furnaces are single‑chamber units that heat workpieces using electrical resistances mounted on side and bottom plates. Chamber geometry and resistance layout promote steady internal air movement by natural convection, providing uniform temperature distribution. Temperature is maintained at the setpoint by automatic thermostatic control.

Technical table
TYPE | CHAMBER DIMENSIONS (W – H – D) | EXTERNAL DIMENSIONS (W – H – D) | POWER (kW)
FE/M 35 | 300 – 230 – 500 | 1020 – 1540 – 1140 | 10
FE/M 83 | 430 – 320 – 600 | 1260 – 1650 – 1270 | 15
FE/M 98 | 510 – 320 – 600 | 1340 – 1650 – 1270 | 15
FE/M 124 | 430 – 480 – 600 | 1260 – 1810 – 1270 | 20
FE/M 130 | 510 – 320 – 800 | 1340 – 1650 – 1470 | 24
FE/M 147 | 510 – 480 – 600 | 1340 – 1810 – 1270 | 20
FE/M 196 | 510 – 480 – 800 | 1340 – 1810 – 1470 | 24
FE/M 392 | 700 – 700 – 800 | 1700 – 2100 – 1650 | 45

Additional data
Maximum operating temperature: 1100 °C. Power supply: 380 V three‑phase + neutral, 50 Hz. Noise level during operation ≤ 80 dBA.

Characteristics / technical specifications

• Heating by electrical resistances mounted on side and bottom plates
• Chamber geometry and resistance arrangement generate constant internal air movement by natural convection for uniform temperature
• Automatic thermostatic temperature control
• Compact monoblock construction for rapid installation
• Solid painted metal casing with internal insulating masonry and multi‑layer fibrous panels
• Supplied complete with electric heating, thermostatic control, hinged front door and electrical control panel
• Steel base floor with special refractory material to facilitate loading/unloading at high temperatures
• Noise level during operation ≤ 80 dBA
• Maximum operating temperature: 1100 °C
• Power supply: 380 V three‑phase + neutral, 50 Hz
