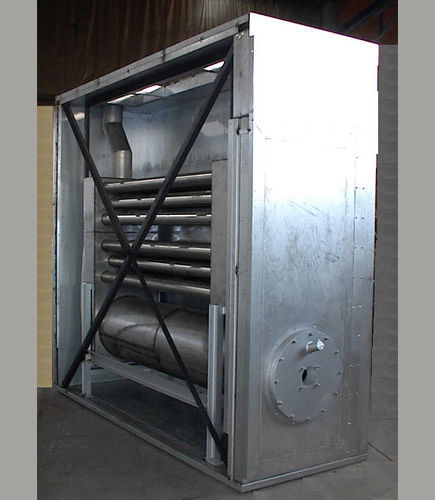

Tube bundle heat exchanger

gas/gasgalvanised steelstainless steel

Product overview
Designed for air heating, these heat exchangers feature an insulated Aluzink steel panel casing that houses an AISI 304 combustion chamber with flame inversion and an integrated tube bundle.

Materials and components
Constructed from AISI 304 stainless steel sheet. Supplied complete with:

• burner mounting plate
• CE-compliant burner feed rail
• combustion inspection window
• natural gas or LPG burners with variable output

Air movement
Airflow and recirculation are provided by electric fans specifically designed for high-temperature operation.

Safety and controls
The exchanger is equipped with a safety thermostat calibrated approximately 50°C above the set temperature that interrupts heating in case of anomalies. A preset ventilation cycle allows the unit to cool after shutdown.

Technical specifications

• Casing: Aluzink steel panels, suitably insulated
• Combustion chamber: flame inversion with tube bundle
• Construction material: AISI 304 stainless steel sheet
• Included accessories: burner mounting plate; CE-compliant burner feed rail; combustion inspection window; natural gas or LPG burners (variable output)
• Air handling: electric fans rated for high-temperature airflow and recirculation
• Safety thermostat: calibrated at approximately 50°C above set temperature (interrupts heating on anomalies)
• Cooling: preset ventilation cycle on shutdown to allow exchanger to cool
