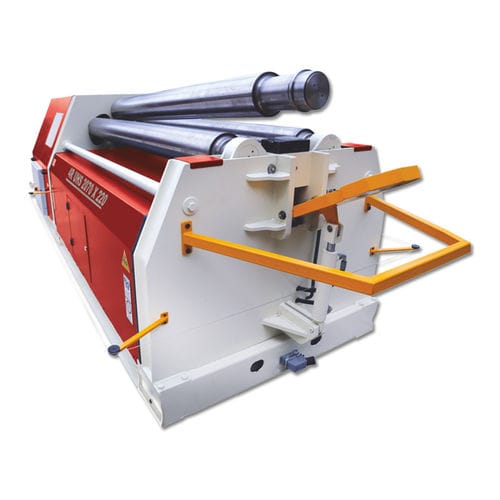

4 drive rollers bending machine 4R UHS series

hydraulicsheet metalrolling

4R UHS roll bending machines are used ofr rolling the sheets with light, medium and heavy materials of aluminum or stainless steel. Thanks to their strong welded steel body, the hydraulic movement through the lower and side rolls and the moving by planetary gearbox connected to the main motor. * Steel constructed machine body ST-52, * Well-equipped shafts made from certified steel with, SAE1050 (CK-45), * Hydraulic up and down movement system with bottom, and laterals rolls, * Hydraulic Drop-End for easy roll positioning, * Hardened rolls, * Conical bending device, * Mobile electrical control panel, * Movement and parallelism adjustment of the rollers, controlled from control panel, * Three digital readouts for easy roll positioning, * Hydraulic balancing system, * Overload protection, * Accordance with CE standards « Two - speed working system (0275 and above), * Electro - hydraulic calibration * Overhead Crane for large diameters * Hydraulic lateral side supports for large diameters, * Material feed table « Infinitively variable speed of rotation, * NC control panel, * CNC control system * Oil cooling system
