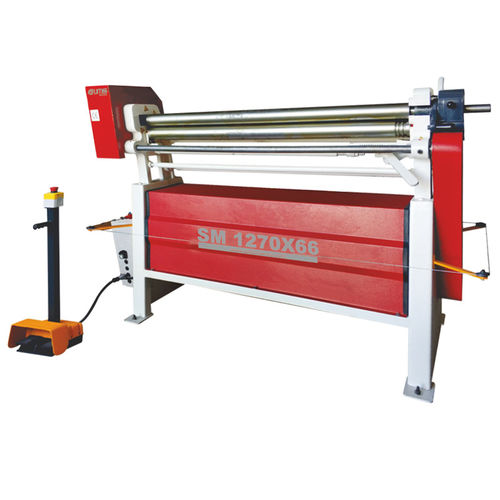

Electric bending machine SM seriessheet metal3 drive rollers
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- sheet metal
- Number of rollers
- 3 drive rollers
- Bending capacity
1 mm, 2 mm
(0.04 in, 0.08 in)- Bending length
1,070 mm, 1,270 mm, 1,570 mm, 2,070 mm
(42 in, 50 in, 62 in, 81 in)- Overall length
Min.: 1,500 mm
(59 in)Max.: 2,800 mm
(110 in)- Overall width
750 mm
(30 in)- Total height
1,200 mm
(47 in)- Weight
Min.: 350 kg
(772 lb)Max.: 585 kg
(1,290 lb)- Total power
0.8 kW
(1.1 hp)
Description
Our SBM and SB models are generally built for light duty use. It is used in jobs
up to 3: 0mm materials. It is especially preferred by small workshops with its
wide usage area.
Die-cast main body
With chain and gear system from reducer, upper and lower roll driven (SBM)
Highly equipped shafts made of SAE 1050 (CK-45) certified steel
Lower and rear axle moving more or less from one center
Manually open top roll
Conical curling reel
Mobile control panel (SBM)
Wire crimping reel at the end of the rolls
