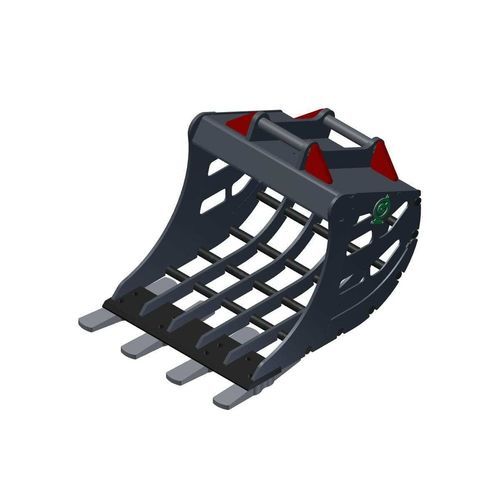

Screening bucket GVF seriesfor excavators
Add to favorites
Compare this product
Characteristics
- Type
- screening
- Load-bearing
- for excavators
- Carrier weight
Max.: 10 t
(11 us ton)Min.: 2 t
(2 us ton)- Bucket width
700 mm, 800 mm, 850 mm
(28 in, 31 in, 33 in)- Capacity
Max.: 650 l
(171.71 gal)Min.: 150 l
(39.63 gal)- Bucket weight
Max.: 335 kg
(738.55 lb)Min.: 120 kg
(264.55 lb)
Description
Available in sizes from 150 liters to 650 liters. Widths range from 700 mm to 1000 mm. Teeth or front blade available upon request. Can be supplied for most types of quick couplings or directly mounted to the machine.
- Model (liter): GVF 170-S30, GVF 260-S40, GVF 416-S50
- Width (mm): 700, 800, 850
- Weight (kg): 115, 120, 180, 200, 335
- Machine size (ton): 2–4, 4–6, 7–10
- Tooth system: M20, M27, ST
- Available sizes: 150 to 650 liters
- Widths: 700 mm to 1000 mm
- Teeth or front blade available upon request
- Compatible with most quick couplings or direct mounting
