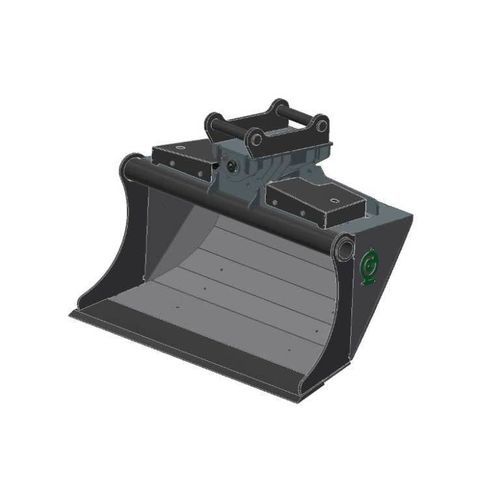

Ditch cleaning bucket GPH series
for excavators

Ditch cleaning bucket - GPH series - Underhaug AS - for excavators

Add to favorites

Compare this product

Characteristics

Type

ditch cleaning

Load-bearing

for excavators

Carrier weight

Max.: 8 t
(9 us ton)

Min.: 1 t
(1 us ton)

Bucket width

Max.: 1,300 mm
(51 in)

Min.: 700 mm
(28 in)

Capacity

Max.: 360 l
(95.1 gal)

Min.: 50 l
(13.21 gal)

Bucket weight

Max.: 235 kg
(518.09 lb)

Min.: 75 kg
(165.35 lb)

Description

The bucket volume ranges from 50 to 360 liters, with widths between 700 and 1300 mm. The weight varies from 75 to 235 kg, and the buckets are designed for machines ranging from 0.8 to 8 tons. - Model (liter) | Volume (L) | Width (mm) | Weight (kg) | Machine (ton) - GPH 50-S30 | 50 | 700 | 75 | 0.8 – 1.5 - GPH 105-S30 | 105 | 1000 | 112 | 1.5 – 2 - GPH 135-S30 | 135 | 1000 | 116 | 1.5 – 2 - GPH 135-S40 | 135 | 1000 | 116 | 2 – 3.5 - GPH 175-S40 | 175 | 1000 | 147 | 2 – 3.5 - GPH 250-S40 | 250 | 1200 | 180 | 4 – 5.5 - GPH 300 S40 | 300 | 1200 | | 5 – 6 - GPH 330-S40 | 330 | 1200 | 220 | 5 – 6 - GPH 360-S40 | 360 | 1300 | 235 | 6 – 8 - GPH 360-S50 | 360 | 1300 | 235 | 6 – 8 - Volume: 50 to 360 liters - Width: 700 to 1300 mm - Weight: 75 to 235 kg - For machines: 0.8 to 8 tons
