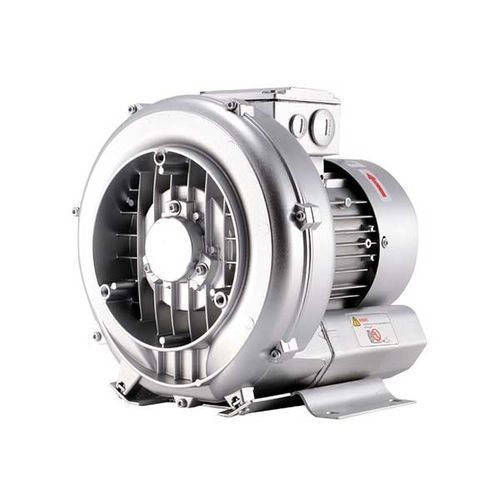

Air blower UC-RB037/3
turbinethree-stageconveying

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
turbine
Number of stages
three-stage
Applications
conveying, drying, process
Other characteristics
three-phase, pneumatic
Flow rate

79 m³/h, 98 m³/h (2,790 ft³/h)

Operating pressure

130 mbar (1.885 psi)

Nominal power

0.4 kW, 0.5 kW (0.54 hp)

Description

Three- Phase UC-RB037/3 Feature: Wide application, Low noise level, High air volume Quiet and low vibration, oil free operation Application: Aeration of waste water systems or pond aeration Vacuum cleaning system, Pneumatic conveying system Galvanic technology, Drying process, Aquaculture Specification Frequency - Hz - 50 - 60 HP - HP - 1/2 Power Consumption - kw - 0.4 - 0.5 Rated Voltage - V - 220 / 380 Rated Current - A - 2.6 △ / 1.5Y Maximum Flow - m3/h - 79 - 98 Maximum Vacuum - mbar - -120 - -150 Maximum Pressure - mbar - 130 - 160 Installation Diameter - inch - G1 1/4" Noise - dB - 53 - 56 Weight - kg - 10
