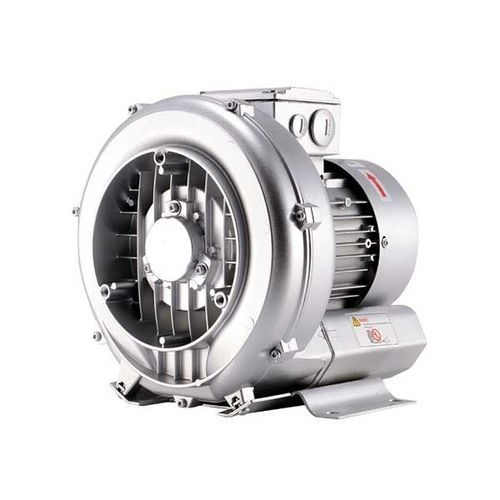

Air blower UC-RB225/3turbinethree-stageconveying
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- turbine
- Number of stages
- three-stage
- Applications
- conveying
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
- Other characteristics
- pneumatic, three-phase
- Flow
210 m³/h, 250 m³/h
(7,416.08 ft³/h, 8,828.667 ft³/h)- Operating pressure
Max.: 290 mbar
(4.206 psi)Min.: -260 mbar
(-3.771 psi)- Nominal power
2.2 kW, 2.55 kW
(2.991 hp, 3.467 hp)- Sound level
64 dB, 70 dB
- Weight
25 kg
(55.12 lb)- Length
346 mm
(13.62 in)- Height
337 mm
(13.3 in)
Description
Wide application, Low noise level, High air volume,Quiet and low vibration, oil free operation
Application:
Aeration of waste water systems or pond aeration,Vacuum cleaning system, Printing technologies,Pneumatic conveying system, Aquaculture
