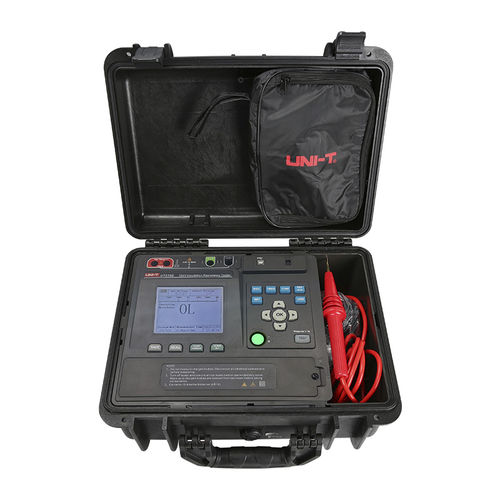

High-voltage tester UT516B

insulationresistanceinsulation resistance

The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V. Fine adjustment of voltage with 10% step at each range (except 12000V) is available. Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time. The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits. Features of UT516B Insulation Resistance Tester ● AC/DC voltage ● USB data transfer ● Low battery indication ● Data storage ● LCD backlight ● Polarization Index ● Over-range alarm ● 9999 Max display ● Comparative measurement ● Measurement time selection General Characteristics Power - 1.5V alkaline batteries (LR14) X 10, power adapter Product color - Red and grey Product net weight - 6.6kg Product size - 410*342*204mm Standard accessories - User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries, Standard individual packing - Gift box, tool box Standard quantity per carton - 1pc Standard carton measurement - 510*320*420mm Standard carton gross weight - 10.2kg
