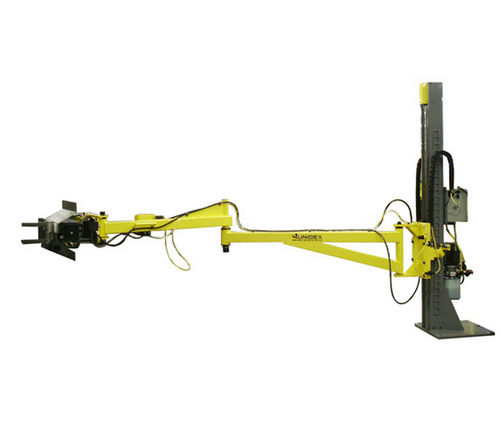

Electric manipulator 500 lbs | EH series
forkpositioningcolumn lift

electric manipulator
electric manipulator
Add to favorites
Compare this product


Characteristics

Drive type
electric
Gripping device
fork
Applications
positioning
Other characteristics
column lift, floor-standing, with swingarm
Carrying capacity

500 lb
(226.8 kg)

Description

EH Series manipulators combine the features of a medium-duty lifter and a manipulator for loads up to 500 lbs. Elevation, tilt, overhead reach, and rotational motion features allow easy access and appropriate positioning of objects. Two articulating arms offer up to 96 inches of horizontal reach. EH Series manipulators provide compact, economical lifting and positioning solutions for moving rolls, sheets, coils, boxes, pails, bags, shafts, frames, and other loads. Typical applications include product assembly, component building and transfer, welding, repair operations, and other work lifting and positioning. Multiple units are often designed into production and assembly lines and as part of fully-integrated, lean manufacturing systems to maximize safety and productivity. Vertical Lifting Columns: standard floor-mounted, electric/hydraulic powered lifting columns provide precise, effortless vertical height adjustment. Load engagement devices are attached to a support arm mounted to a carriage which raises and lowers along linear rails attached to the square tubular steel lifting column. Articulating Arms: either style of the manually-guided articulating arms can be mounted to the moving slider assembly on the lifting column. The centerline height is specified depending on the lowest pick point required. The arm's end effectors can pick from the floor if necessary. Options: Variety of load capacities and lift strokes Various articulating arm lengths and designs Pendant-controlled height adjustment Powered rotations Mobile unit with forklift slots, casters or mounted to a pallet jack Stainless steel construction Other special materials and finishes available
