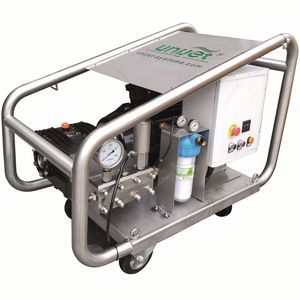

Cold water high-pressure cleaner 350E23 JET
three-phasemobilestainless steel

cold water high-pressure cleaner
cold water high-pressure cleaner
Add to favorites
Compare this product


Characteristics

Type
cold water
Power source
three-phase
Configuration
mobile
Other characteristics
stainless steel
Pressure

350 bar
(5,076.32 psi)

Water output

23 l/min, 28 l/min
(6.08 us gal/min, 7.4 us gal/min)

Description

Technical Characteristics: Stainless steel 304L frame IP55 electric motor Motor efficiency class IE2 Automatic star delta starter Direct power transmission between pump and electric motor Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs Pump oil level indicator Pump max. water temperature at 45˚C Thermal valve Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure) Safety valve (set 10% over operating pressure) in order to protect pump from over-pressure High pressure gauge for accurate display readings Certification of 45’ machine test run on max. operating pressure Model: 350E23 JET Max. operating pressure: 350 bar Voltage: 380 – 440 V Frequency: 50 – 60 Hz Max. water flow rate: 23 lpm @380V | 28 lpm @440V Motor output power: 15 KW / 20 HP Plunger material: Ceramic Pump head material: Hardened brass Motor speed: 1450 rpm Crankshaft speed: 1450 rpm Weight: 175 Kg Dimensions:100x75x83 cm The unit comes with the following equipment (standard configuration): High pressure gun 70cm high pressure lance Flat jet nozzle 10m high pressure hose 400 bar Manual book
