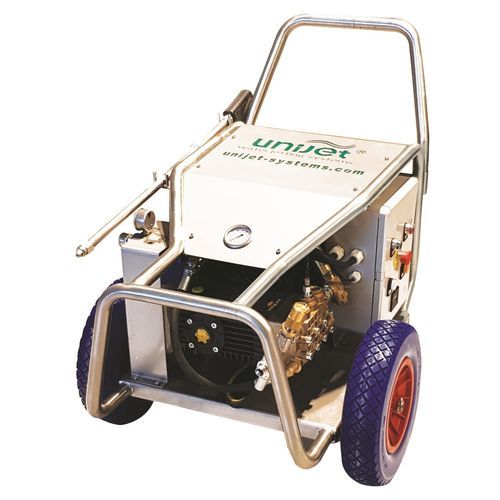

Cold water high-pressure cleaner 500E15 JET

three-phasemobilestainless steel

Technical Characteristics: Stainless steel 304L frame IP55 electric motor Motor efficiency class IE2 Automatic star delta starter Direct drive pump Hardened brass crankshaft drive pump with triple ceramic plungers for high efficiency, long service life and low maintenance costs Pump oil level indicator Pump max. water temperature at 45˚C Thermal valve Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure) Safety valve (set 10% above operating pressure) for pump protection against overpressure 10-micron inlet water filter for long service life of the pump Inlet pressure switch against poor water flow High pressure gauge for accurate display readings Certification of 45’ machine test run on max. operating pressure Model: 500E15 JET Max. operating pressure: 500 bar Voltage: 380 – 440 V Frequency: 50 - 60 Hz Max. water flow rate: 15 lpm @380V | 18 lpm @440V Motor output power: 15 KW /20 HP Plunger material: Ceramic Pump head material: Hardened brass Motor speed: 1450 rpm Crankshaft speed: 1450 rpm Weight: 150 Kg Dimensions: 100x75x83 cm The unit comes with the following equipment (standard configuration): High pressure gun 70cm high pressure lance Flat jet nozzle 10m high pressure hose 600 bar Manual book
