Not specified controller module A403036

not specified controller module
not specified controller module
Add to favorites
Compare this product


Characteristics

Application
not specified

Description

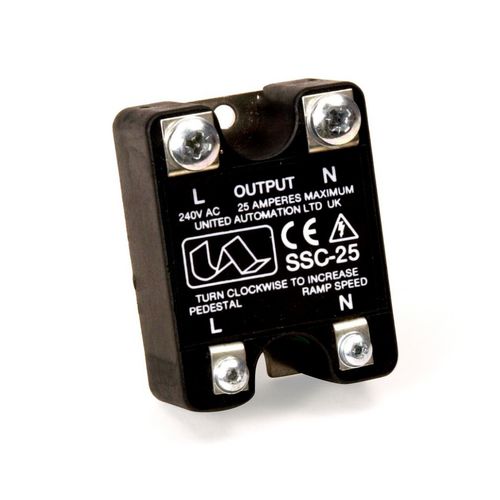

This mains-operated soft-start power module gives an adjustable ramp up time of between 1 and 60 seconds. The unit also incorporates a 10 – 50% pedestal, which allows a variable set point of the start up voltage required on certain applications. These units are capable of soft-starting loads up to 25A (when mounted on a suitable heatsink). APPLICATIONS The unit is suitable for most resistive and inductive loads within voltage and power limitation, such as heat lamps, fans, pumps and other ac motor loads. FEATURES • Compact and easy to use. • Adjustable ramp up time. • Adjustable pedestal. • Simple wiring. • High inrush capability
