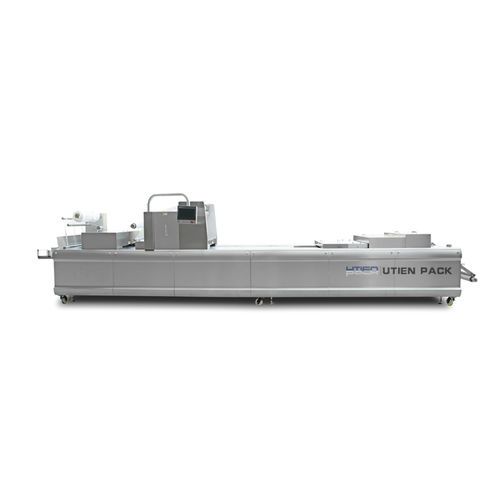

Panel thermoforming machine DZL-420VSP

plastic filmfor food packagingautomatic

Utien Pack has used the latest thermoforming technology in the safest manner possible to package and retain food in the freshest manner available.Thermoforming uses high vacuum power to force special skin pack film to completely  cover and secure the food product. Machine Parameters Speed 5-7Cycles/min Advance Length: ≤500mm Bottom Film Material: Sealable PE/PA Multi-layer Co-extruded Plastic Film Print: Unprinted Color Bottom Film or Transparent Film Roll Diameter: 500mm Thickness: ≥300um Top Film Material: Sealable PE/PA Multi-layer Co-extruded Plastic Film Print: Pre-printed Top Film or Transparent Top Film Roll Diameter: 250mm at most Thickness: ≤200um Components Vacuum Pump: BUSCH(Germany) Electrical Components: Scheneider(French) Pneumatic Components: SMC(Japanese) PLC Touch Screen & Servo Motor: DELTA(Taiwan) Machine Parameters Dimensions: 6000mm×1300mm×1870mm Weight: 2000kg Working Height: 1000mm Loading Area Length: 1500mm(Customizable) Perfect packaging Skin Pack is like a second skin of the product that completely attaches to it and at the same time seals to the bottom tray and aviod that water or blood for some fresh meat leaking. Long shelf life The aided shelf life can be extended by 2-3 times compared to the same product exposed in open atmosphere.
