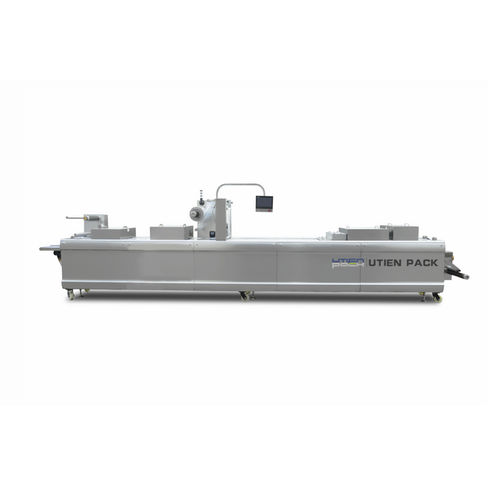

Thermoforming modified atmosphere packaging machine
DZL-420Y
After rigid film is formed into a particular shape, the machine starts to do vacuum and then flush gas to finish MAP (modified atmosphere packing). In this way, we can reach the lowest level of residual oxygen in the package.
Packing speed
Usually, the capacity is usually 5-7 circles/min, and the max capacity can reach 12 circles/min.
Patent system by Utien
Our die cutting system for rigid rim offers smooth rim cutting without any burrs. It makes the package safer and more attractive.
Thermoforming depth
Our max forming depth is 120mm with homogeneous deformation.
Package sealing
The sealing width can be customized 4-10mm. Here are various sealing patterns for you option, such as cobwebbing, tabby.
Machine Parameters
Dimensions:6000mm*1300mm*1870mm
Weight:2000kg
Operating Panel Height:1600mm
Loading Area Length:1500mm(Customizable)
Working Parameters
Film widths:≤520mm
Advance Length:≤500mm
Forming Depth:≤150mm
Speed:5-7(Cycles/min)
Top Film
Material:Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print:Pre-printed Top Film or Transparent Top Film
Roll Diameter:250mm at most
Thickness:≤200um
Bottom Film
Material:Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print:Unprinted Color Bottom Film or Transparent Film
Roll Diameter:500mm
Thickness:≥300um
Components
Vacuum Pump:BUSCH
Electrical Components:Scheneider
Pneumatic Components:SMC
PLC, Touch Screen & Servo Motor:DELTA
