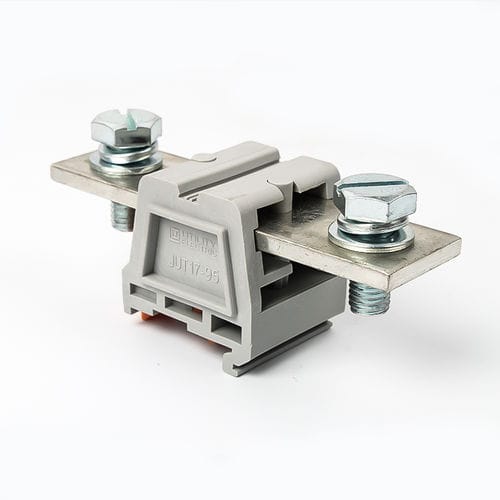

DIN rail-mounted terminal block JUT17 seriesscrew connectionstudfeed-through
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection, stud
- Other characteristics
- feed-through, single-pole, power, high-current
- Cross-section
Min.: 10 mm²
(0.02 in²)Max.: 240 mm²
(0.37 in²)- Current
Min.: 100 A
Max.: 400 A
- Nominal voltage
1,000 V
Description
JUT17 Series Terminal blocks for OT/SC pre-crimped cables.
This series TB uses screws to connect OT / SC or other Ring-shape cable lugs/terminals to complete the connection between wires, which is applied to connect large cables with high current. It can be used in low-voltage power transmission, industrial power distribution, and construction wiring.
It also can connect to flexible busbar directly for the connection.
Connection Capacity: 10-25mm2, 20-50mm2, 50-95mm2, 95-150mm2, 150-240mm2
Rated Current: 100A, 150A, 200A, 275A, 400A
Rated Voltage: 1000V
Certification: CE
