Modular base plate PEX-MS30

precisionaluminumanodized aluminum

Product overview

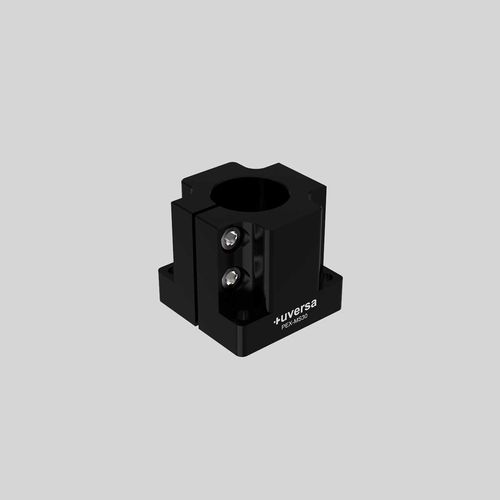

The column base PEX-MS30 is a compact mono pedestal for modular assemblies. Precisely machined locating bores facilitate alignment and mounting of 30 mm system columns. The pedestal is machined from anodized aluminum and is available in several anodized colours. A conductive version with SurTec® 650 (ESD-conductive, passivated) is offered for use in ESD-protected areas.

Features / Benefits

• Compact mono pedestal for stable vertical mounting of 30 mm system columns
• Precisely milled locating bores for easy alignment and repeatable installation
• Anodized aluminum construction for corrosion protection and premium appearance
• Available conductive SurTec® 650 surface for ESD-protected areas
• Multiple colour options for identification and system matching

Typical applications

• Mechanical engineering
• Fixture and jig construction
• Assembly and testing systems
• Special-purpose machinery requiring precise column fixation

Compatibility / Mounting
Designed for direct mounting to EVO-KM30 and VARO-JM30 modules. Mounting holes allow secure fastening to the installation surface and precise alignment during fixation.

Available variants

• Black anodized (Standard) — typically in stock
• Blue anodized — extended lead time (approx. 10 business days)
• Red anodized — extended lead time (approx. 10 business days)
• Green anodized — extended lead time (approx. 10 business days)
• Gold anodized — extended lead time (approx. 10 business days)
• SurTec® 650 (ESD-conductive, passivated) — extended lead time (approx. 10 business days)

Notes
Prices vary by finish and ESD coating. The product is part of the uversa modular system and can be combined with other 30 mm modules and accessories.

Technical specifications

• Model: PEX-MS30
• Material: Aluminum (milled)
• Surface: Anodized (multiple colours) or SurTec® 650 (ESD-conductive, passivated)
• Weight (typical): 0.236 kg
• Country of origin: Germany
• HS code: 90330090
• Compatibility: Direct mounting to EVO-KM30 and VARO-JM30 modules
• Delivery: Black (standard) typically in stock; coloured and ESD versions: approx. 10 business days lead time
