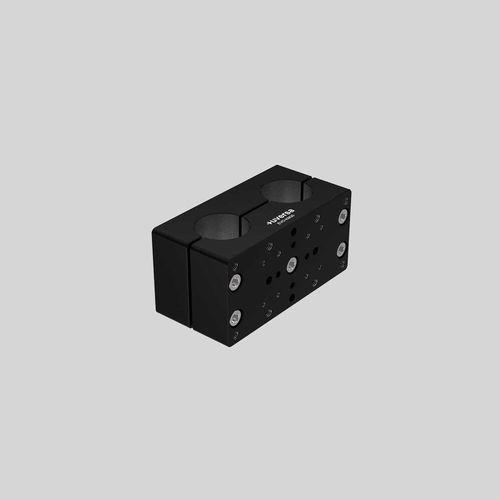

Mechanical clamping unit EVO-KM30

anodizedmodularaluminium

Product overview
EVO-KM30 is a two-piece clamping module designed for modular two-column systems. It provides locating bores for precise positioning and permits retrofit installation on assembled systems. Precisely machined bores ensure accurate alignment and reliable fastening, and the module allows direct connection to mono and duo pedestals (PEX-MS and PEX-DS).

Features

• Two-piece clamping module with locating bores for precise positioning
• Retrofit-capable: can be installed on assembled systems without disassembly
• Precisely machined bores for accurate alignment and reliable fastening
• Standard surface: black anodized; colored anodized versions available
• Conductive SurTec 650® coating available for use in ESD protection zones

Available versions & pricing

• Black anodized (Standard) — €75.10 (excl. VAT) — Black anodized in stock; delivery: approx. 3 business days
• Colored anodized (Blue, Red, Green, Gold) — €85.40 (excl. VAT) — Extended lead time: approx. 10 business days
• SurTec® 650 (ESD-conductive, passivated) — €92.50 (excl. VAT) — Extended lead time: approx. 10 business days

Compatibility

• Directly compatible with PEX-MS (Mono Pedestal) and PEX-DS (Duo Pedestal)

Typical applications

• Mechanical engineering
• Modular assemblies
• Fixtures
• Test rigs

Technical specifications

• Model: EVO-KM30
• Article numbers / SKUs: EVO-KM30-S (Black), EVO-KM30-B (Blue), EVO-KM30-R (Red), EVO-KM30-G (Green), EVO-KM30-A (Gold), EVO-KM30-ESD (SurTec® 650)
• Material: Aluminum (milled)
• Weight: 0.64 kg
• Country of origin: Germany
• HS code: 90330090
• Standard surface: Black anodized; colored anodized and SurTec 650® coating available
• Delivery: Black in stock; colored and ESD versions approx. 10 business days
