Module holder ELO-MHfor cablesfor panelscomponent
Add to favorites
Compare this product
Characteristics
- Applications
- for cables, for cable tray, component, for DIN rail, for control panel, for panels, module
- Material
- aluminium
- Other characteristics
- modular
Description
Product summary

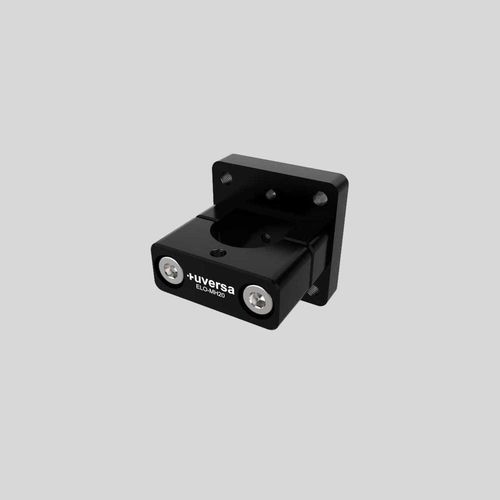

The ELO-MH module holder is a two-piece milled aluminum holder for mounting additional components on columns. The two-piece design allows retrofitting on existing columns without disassembly or modification of the current assembly.
Product description
20 mm: Compact holder for space-saving assemblies and secure mounting of compatible components. Supplied standard in black anodized finish. Available sizes: 20 mm, 30 mm, 40 mm.
Applications
Installation
Material & Surface
Milled aluminum construction. Standard surface: black anodized aluminum providing corrosion protection and a uniform durable finish. Alternative coatings (e.g., SurTec 650) available on request as made-to-order options (longer lead times and additional costs apply).
Compatibility
The ELO-MH is compatible with corresponding sizes of VIA series columns and integrates into the uversa system to provide a stable base for additional components.
Additional information
Available sizes: 20 mm, 30 mm, 40 mm. The two-piece design enables precise and secure mounting for modular expansion of machines, sensors and automation assemblies while keeping components organized.
Technical specifications
The ELO-MH module holder is a two-piece milled aluminum holder for mounting additional components on columns. The two-piece design allows retrofitting on existing columns without disassembly or modification of the current assembly.
Product description
20 mm: Compact holder for space-saving assemblies and secure mounting of compatible components. Supplied standard in black anodized finish. Available sizes: 20 mm, 30 mm, 40 mm.
Applications
- Mounting DIN rails
- Mounting cable ducts
- Mounting control elements
- Mounting adapter plates
Installation
- The ELO-MH consists of two halves allowing retrofit installation on assembled columns.
- Align both halves at the required position on the column.
- Fasten using the two cylinder head screws to form a stable connection; connection can be loosened or repositioned if needed.
Material & Surface
Milled aluminum construction. Standard surface: black anodized aluminum providing corrosion protection and a uniform durable finish. Alternative coatings (e.g., SurTec 650) available on request as made-to-order options (longer lead times and additional costs apply).
Compatibility
The ELO-MH is compatible with corresponding sizes of VIA series columns and integrates into the uversa system to provide a stable base for additional components.
Additional information
Available sizes: 20 mm, 30 mm, 40 mm. The two-piece design enables precise and secure mounting for modular expansion of machines, sensors and automation assemblies while keeping components organized.
Technical specifications
- Brand: uversa
- Model / Denomination: ELO-MH
- Article number (SKU): ELO-MH20-S (example)
- Available sizes: 20 mm, 30 mm, 40 mm
- Material: Aluminum (milled)
- Surface / Finish: Black anodized (standard)
- Colors: Black anodized (standard)
- Design: Two-piece
- Product type: Module holder
- Country of origin: Germany
- HS code: 90330090
- Weight (example variant): 0.061 kg
- Price indication (excl. VAT): 26.60 € (plus applicable VAT)
