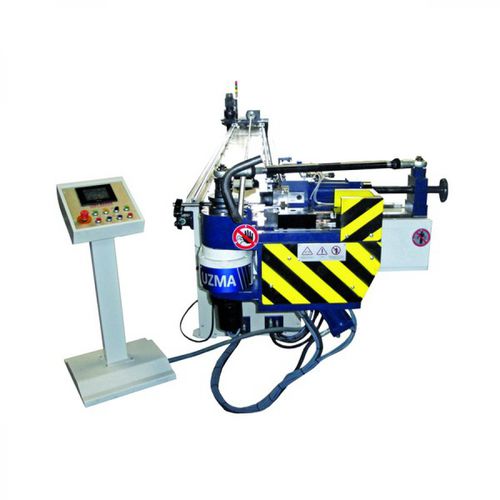

Hydraulic bending machine UZN tubeprofilefully-automatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube, profile
- Control
- NC, semi-automatic, fully-automatic, PLC-controlled
- Associated function
- forming
- Other characteristics
- mandrel, high-efficiency, 3-phase
- Bending capacity
Min.: 32 mm
(1.26 in)Max.: 114.3 mm
(4.5 in)- Bending radius
275 mm, 350 mm
(10.83 in, 13.78 in)- Bending angle
190 °
- Accuracy
0.1 °
- Overall length
3,400 mm, 4,000 mm, 5,000 mm, 6,300 mm
(134 in, 157 in, 197 in, 248 in)- Overall width
1,200 mm, 1,500 mm, 1,700 mm, 1,850 mm, 2,200 mm
(47 in, 59 in, 67 in, 73 in, 87 in)- Total height
1,100 mm, 1,300 mm, 1,400 mm, 1,450 mm
(43 in, 51 in, 55 in, 57 in)- Weight
Min.: 2,000 kg
(4,409 lb)Max.: 6,500 kg
(14,330 lb)- Total power
5.5 kW, 11 kW, 15 kW, 22 kW, 30 kW
(7.5 hp, 15 hp, 20.4 hp, 29.9 hp, 40.8 hp)
Description
UZN Line NC Controlled Tube Bending Machines
"The UZMA UZN line NC series tube benders are equipped with NC control unit and Touch Screen Interface. It combines easy to use operation with high bending accuracy and cost effectiveness accuracy. It is the practical semi-automatic solution for productions.
Standard Accessories:
• NC control - PLC system 7" touch screen
• Easy operation interface and enable easy data input
• Large program capacity
• Self diagnosis & error messages on-screen display
• Automatic or manual operation
• Hydraulic clamp
• Hydraulic mandrel
• Hydraulic support for pressure die
• Hydraulic sledge (bending assist)
• Hydraulic mandrel retract system
• Hydarulic bending movement
• Oil cooler
• Automatic system lubrication
