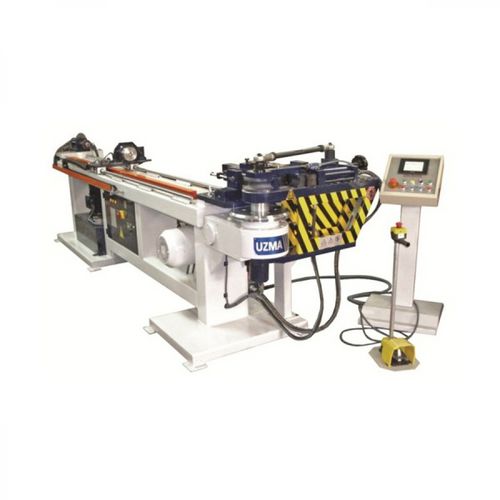

Hydraulic bending machine UZH motorizedtubeprofile
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Product handled
- tube, profile
- Displacement
- horizontal
- Control
- NC, semi-automatic, PLC-controlled
- Associated function
- forming
- Other characteristics
- mandrel, high-efficiency, 3-phase
- Bending capacity
Min.: 32 mm
(1.26 in)Max.: 89.9 mm
(3.54 in)- Bending radius
225 mm, 250 mm, 275 mm
(8.86 in, 9.84 in, 10.83 in)- Bending angle
190 °
- Accuracy
0.2 °
- Overall length
Min.: 2,650 mm
(104 in)Max.: 5,000 mm
(197 in)- Overall width
Min.: 850 mm
(33 in)Max.: 1,500 mm
(59 in)- Total height
Min.: 1,050 mm
(41 in)Max.: 1,300 mm
(51 in)- Weight
450 kg, 900 kg, 1,360 kg, 1,450 kg, 2,000 kg
(992 lb, 1,984 lb, 2,998 lb, 3,197 lb, 4,409 lb)- Total power
4.4 kW, 7 kW, 11 kW, 13 kW, 18.5 kW
(6 hp, 9.5 hp, 15 hp, 17.7 hp, 25.2 hp)
Description
UZH Line Semi Hydraulic Tube Bending Machines
The UZMA UZH line series tube benders are semi hydraulic Machines with with Gear motor driven bending movement. The UZH Machines can be produced through the customer needs, requests and budgets with aditonal options. These Machines are one of the economical solution of mandrel tube bendings for small - medium productions.
Standard Accessories:
• NC control - PLC sistem 4,3" or 7" touch screen (UZH 32 to 51)
• NC control - PLC sistem 7" touch screen (on UZH 76 & 90)
• Hydraulic clamp
• Hydraulic mandrel
• Manual or hydraulic support (UZH 32 to 51)
• Hydraulic support (UZH 76 & 90)
• Hydraulic sledge (UZH 76 & 90)
• Hydraulic mandrel retract system
• Gear motor driven bending movement
