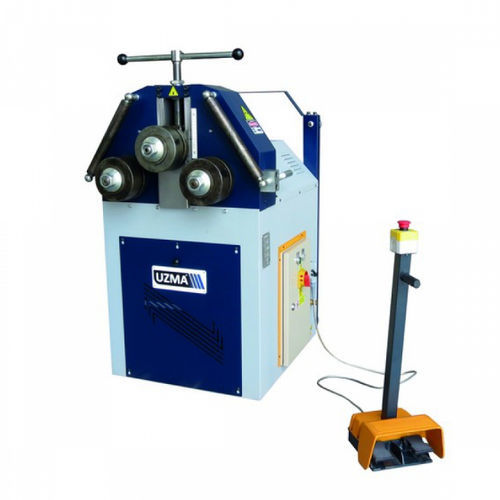

Profile bending machine UPB hydraulicmotorizedtube
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Product handled
- tube, profile, bar
- Number of rollers
- 3 drive rollers
- Displacement
- horizontal, vertical
- Control
- NC, numerical control
- Associated function
- forming
- Other characteristics
- high-efficiency, 3-phase, multi-axis
- Bending capacity
Min.: 30 mm
(1.18 in)Max.: 100 mm
(3.94 in)- Roller diameter
Min.: 118 mm
(5 in)Max.: 315 mm
(12 in)- Overall length
Min.: 600 mm
(24 in)Max.: 2,000 mm
(79 in)- Overall width
Min.: 800 mm
(31 in)Max.: 1,450 mm
(57 in)- Total height
Min.: 1,400 mm
(55 in)Max.: 1,700 mm
(67 in)- Weight
Min.: 220 kg
(485 lb)Max.: 3,650 kg
(8,047 lb)- Total power
Min.: 0.7 kW
(1 hp)Max.: 7.5 kW
(10.2 hp)
Description
• Steel frame
• Two rolls direct driven by a gear system
• Rolls are hardened
• Rolls shafts are special steel material hardened and ground
• Roll shafts housed by bearings
• Standard rolls
• Adjustable guide rolls
• Horizontal and vertical working position
