- UZMA Makina San.Tic.Ltd.Sti.

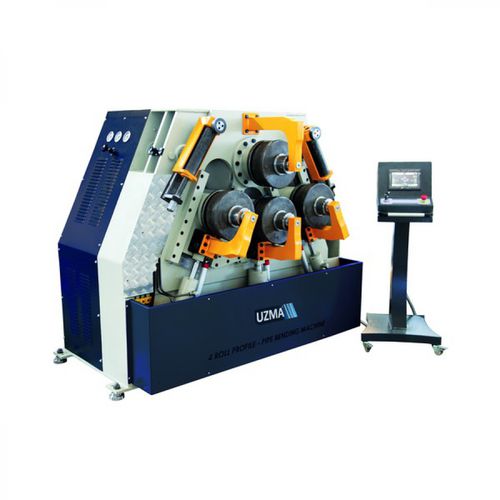

Profile bending machine UPB-4 hydraulic4 drive rollershorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- profile
- Number of rollers
- 4 drive rollers
- Displacement
- horizontal, vertical
- Bending capacity
70 mm, 90 mm, 110 mm
(2.76 in, 3.54 in, 4.33 in)- Roller diameter
200 mm, 260 mm, 320 mm
(8 in, 10 in, 13 in)- Overall length
1,200 mm, 1,700 mm, 2,000 mm
(47 in, 67 in, 79 in)- Overall width
1,100 mm, 1,450 mm, 1,700 mm
(43 in, 57 in, 67 in)- Total height
800 mm, 1,200 mm, 1,250 mm
(31 in, 47 in, 49 in)- Weight
1,400 kg, 2,800 kg, 4,500 kg
(3,086 lb, 6,173 lb, 9,921 lb)- Total power
3 kW, 5.5 kW, 7.5 kW
(4.1 hp, 7.5 hp, 10.2 hp)
Description
• 4 rolls machine.
• Steel welded construction frame.
• 3 rolls are hydraulic powered by planetary gear box (UPB-4 90-110)
• 2 rolls are hydraulic powered by planetary gear box (UPB-4 70)
• Hardened and ground shafts made of high tensile special steel.
• Rolls are hardened and ground in the hole.
• Bottom and lateral rolls hydraulik movable up-down.
• Horizontal and vertical working position.
• 3+3 Axis hydraulic lateral angle guide rolls (UPB-4 90-110)
• 2+2 Axis mechanical lateral angle guide rolls (UPB-4 70)
• Mobile control panel.
