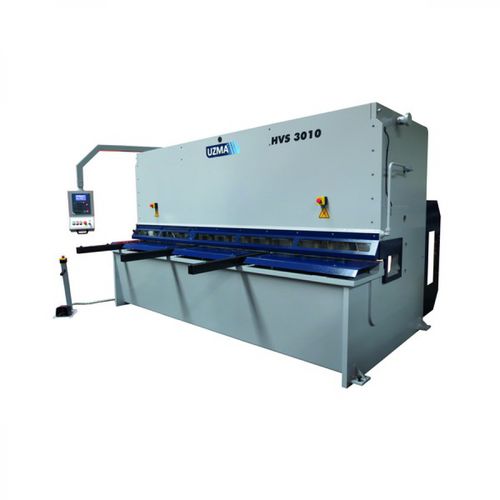

Hydraulic shear HVS

for metalsheet metalguillotine

UZMA HVS variable rake shears are produced by construction of Steel into a very rigid structure to allow minimum deflection during the operation. The rake angle adjustment is done hydraulicaly, reducing the rake gives an advantage in reducing distortion on thin narrow strips also increase the cut quality and cut per minute. Cutting beam on HVS variable rake shears has hardened slide ways working between roller bearings, so lubrication is eliminated and blade clearance adjustment can be done easily in mechanical or hydraulic system. The UZMA HVS variable rake shears are equipped with CNC control unit. When operator simply enters the material type, thickness, cutting length, cutting width and the CNC will automatically calculate and set the blade clearence, rake angle and back gauge position accordingly. Standard Accessories: • Cybelec CNC control unit (2D color-touch screen) • CNC controlled cutting length (stroke) adjustment • CNC controlled backgauge adjustment • CNC controlled rake angle adjustment • CNC controlled automatic blade gap adjustment • Automatic calculations of cutting functions upon material specifications • Automatic swing-up backgauge • 1m flip-up openable finger guard with switch protection • Back side protection panels & rear light barrier • Rear sheet sliding plates • Shadow line illumination • Squaring arm with ruler & t-slot & tilting stop • Ball transfer tables
