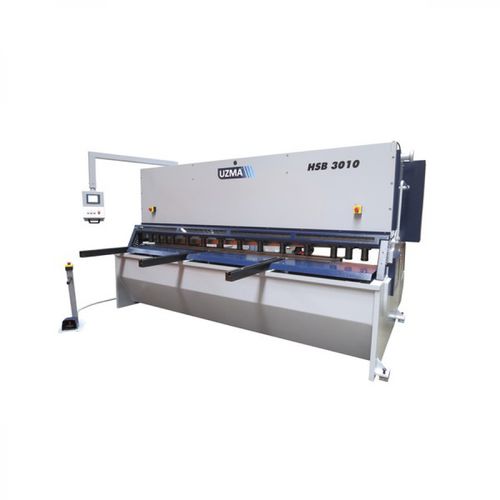

Swing-beam shear HSB series
hydraulicfor metalfor sheet metal

swing-beam shear
swing-beam shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
for metal, for sheet metal
Type
guillotine, swing-beam
Other characteristics
CNC, precision, high-productivity

Description

HSB swing beam shears has Steel constructed frame with the usage of rigit structural Steel, and by design construction ,machine provides reliable, fast and accurate shearing. The one piece welded frame is machined at one time on a CNC moving column machining center, the upper beam (swing beam) has a very rigit box frame Steel construction and this allows the rake a angle of the upper blade to be at very low level, this is the point for reducing distortion in the sheared part. As Standard on UZMA HSB shears, backgauge bar swings with the cutting beam to prevent material from jamming and additionally to feed longer sheets, the backgauge bar swings up automatically after the travel of the backgauge to the end position. UZMA HSB Line swing beam shears has two series, HSB-E Series (Economical) and HSB Series (Standard). HSB Standard Series are the fully hydraulic, heavy duty models and HSB-E Series are the lighter version models with spring system cutting beam return movement. "HSB & HSB-E Series Standard Accessories: ● CNC Control - Cybelec CybTouch 6 (color-touch screen) ● CNC Controlled cutting length (stroke) adjustment ● CNC Controlled back gauge adjustment ● Pendant control panel (Fixed on HSB-E Series) ● Automatic calculations of cutting functions upon material specifications ● Automatic swing-up backgauge ● 1m flip-up openable finger guard with switch protection ● Manual Blade gap adjustment ● Back side protection panels & Rear light barrier ● Rear Sheet sliding plates ● Shadow line illumination ● Squaring arm with Ruler & T-Slot & Tilting stop ● Support arms with Ruler & T-Slot & Tilting stop ● Ball Transfer Tables ● Cutting & return movement hydraulic (on HSB Serie
