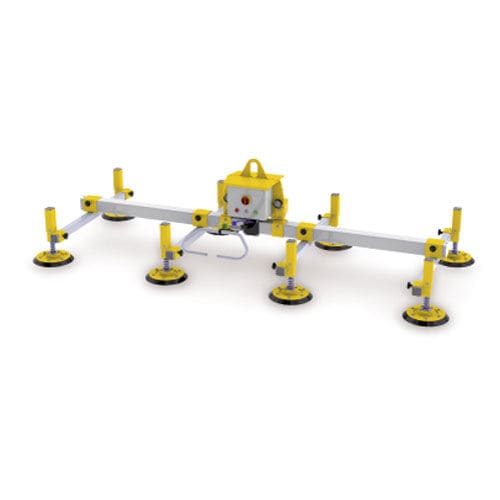

Electric vacuum lifting device H-8Q-1250

single-girderfor aluminum platesteel sheet metal

The electrical systems of the H-8Q series are equipped with 8 suction pads for the transport of large and bulky loads. The high-quality rubber of the sealing rings also guarantees that sensitive surfaces can be lifted horizontally without scratches made possible by system configurations. The visual and acoustic warning system also offers the highest level of safety even in the event of a power failure. The outstanding quality, robustness and longevity of the Red Line systems speak for themselves. The VacuLifter® H-8Q-1250 is available with a variety of optional extensions such as a suction cup shut-off via a manual valve, an exchange set , a transport trolley, water separator, Ergo-Flex handle as well as a folding or forklift traverse, automatic cycle switch-off, cable remote control incl. holder, folding parking supports - or also in a 400 V version. Like all systems of the Red-Line, this system is also optionally available with pneumatic equipment in the Blue-Line. Change set The interchangeable set enables different suction pads and compact truss units to be connected via a pin connector and a vacuum quick-release coupling. The suction pad can be replaced quickly and easily without having to separate the VacuLifter from the crane hook. The exchange set is available for loads up to 300 kg. For higher load capacities only available on request. Transport trolley The rollable transport trolley ensures maximum mobility. The free-standing loading area, where the suction pads float freely during transport, protect the suction pad seals (sealing rings).
