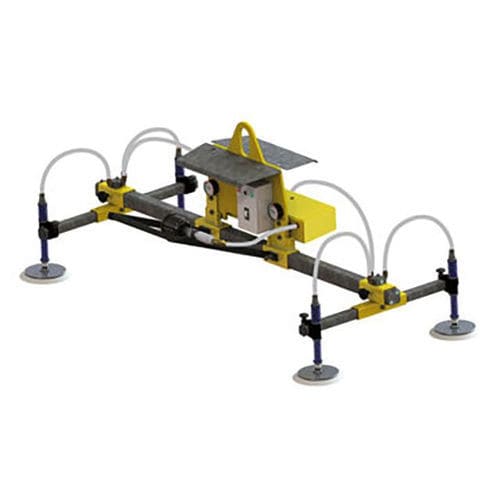

Electric vacuum lifting device H-4Q-750
H-shapedfor sheet metalhorizontal

electric vacuum lifting device
electric vacuum lifting device
Add to favorites
Compare this product


Characteristics

Model
H-shaped
Product applications
for sheet metal
Type
horizontal
Power
electric, pneumatic
Options
automatic
Carrying capacity

750 kg
(1,653 lb)

Number of cups

4 unit

Overall length

1,800 mm
(70.87 in)

Total width

1,130 mm
(44.49 in)

Weight

148 kg
(326.28 lb)

Description

With 4 suction pads and high-quality rubber sealings guarantee smooth transport even of bulky goods. The H-4Q series is also equipped with an optical and acoustic warning system, which offers the highest level of safety for people and loads even in the event of a power failure. Anyone who knows the advantages of the Red Line knows that the electric vacuum lifters are easy and uncomplicated to operate and control using lever valves, cable controls, buttons and radio, as well as the system configurations. Whether outdoors or indoors, almost all materials can be lifted horizontally in almost any shape. With a voltage from 230 volts, the highest quality and durability, the VacuLifter® of the Red Line are among the most popular Systems. The VacuLifter® H-4Q-750 is available with various optional extensions such as a suction pad shut-off via a manual valve, an exchange set, a transport trolley, water separator, Ergo-Flex handle or a forklift traverse, automatic cycle shutdown, cable remote control including holder, foldable parking supports - or also in a 400 V version - available. Like all systems in the Red-Line, this system is optionally available with pneumatic equipment in the Blue-Line. Change set The interchangeable set enables different suction pads and compact truss units to be connected via a pin connector and a vacuum quick-release coupling. The suction pad can be replaced quickly and easily without having to separate the VacuLifter from the crane hook. The exchange set is available for loads up to 300 kg. For higher load capacities only available on request.
