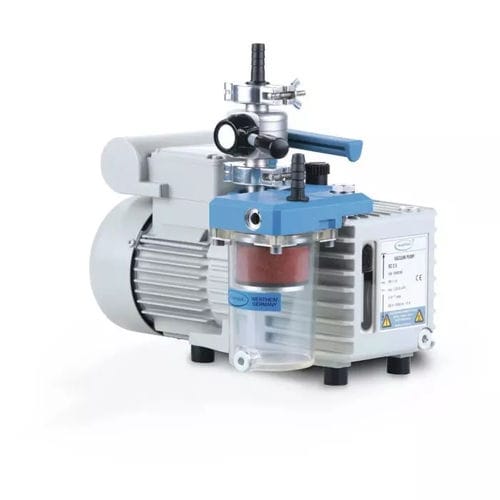

Rotary vane vacuum pump RZ 2.5 +FO +VS 16oil-filled230VACtwo-stage
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- oil-filled
- Supply voltage
- 230VAC
- Number of stages
- two-stage
- Applications
- for laboratory, for medical applications, for the chemical industry, for gas, chemical process, for pharmaceutical applications, for the plastics industry
- Other characteristics
- compact, high-performance
- Ultimate vacuum
0 mbar
(0 psi)- Flow rate
2.3 m³/h, 2.8 m³/h
(81.22 ft³/h, 98.88 ft³/h)- Power
0.2 kW
(0.27 hp)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)- Length
390 mm
(15 in)- Width
142 mm
(5.59 in)- Height
240 mm
(9.45 in)- Noise level
48 dB
- Weight
15 kg
(33.07 lb)
Description
high flow rates even at vacuum levels approaching ultimate vacuum
very good ultimate vacuum even with gas ballast
vacuum-tight at switch-off; external anti-suckback valve not needed
large oil volume: Long intervals between oil changes
ease of maintenance due to telescopic design
Rotary vane pump in action
The one-stage RE 2.5 and two-stage RZ 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. The RZ 2.5 is also available combined with the oil mist filter (FO) and the VS 16 valve as a package.
Catalogs
No catalogs are available for this product.
See all of VACUUBRAND‘s catalogsOther VACUUBRAND products
Rotary vane pumps
