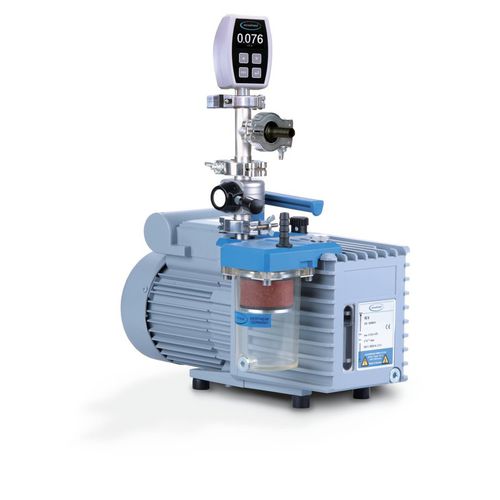

Rotary vane vacuum pump RZ 6 +FO +VS 16 +VACUU·VIEW

rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


rotary vane
Supply voltage
Number of stages
for laboratories, chemical process
Other characteristics
Ultimate vacuum

0 mbar, 0.01 mbar (0 psi)

Flow rate

5.7 m³/h, 6.8 m³/h (201.29 ft³/h)


0.3 kW (0.41 hp)

Operating temperature

Min.: -10 °C (14 °F)

Max.: 60 °C (140 °F)


370 mm (15 in)


227 mm (8.94 in)


207 mm (8 in)

Noise level

50 dB


17.2 kg (37.92 lb)


These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The two-stage rotary vane pump RZ 6 is also available as a package including pump, oil mist filter FO, valve VS 16 and vacuum gauge VACUU·VIEW extended. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers. The pumping unit PC 3 is the perfect choice for applications requiring special protection of pump and environment. Designed for the use in chemical laboratories the cold trap helps the pumps to handle large volumes of condensable vapors. The cold trap is metalized for extended coolant life and protected against implosion. Performance features high flow rates even at vacuum levels approaching ultimate vacuum high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast vacuum-tight at switch-off; external anti-suckback valve not needed large oil volume: Long intervals between oil changes ease of maintenance due to telescopic design


No catalogs are available for this product.

See all of VACUUBRAND‘s catalogs
