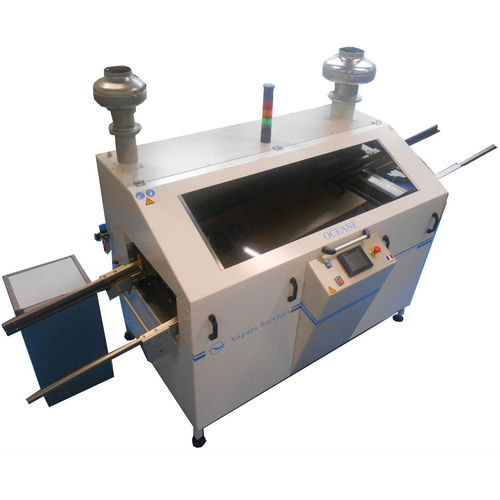

Wave brazing machine OCEANE
automaticfor medium-scale productionfor small-scale production

wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
Add to favorites
Compare this product


Characteristics

Technique
wave
Operating mode
automatic
Applications
for medium-scale production, for small-scale production
Other characteristics
compact, in-line, electric
Power

9,000 W

Description

• Nozzle width: 350 mm • PCB volume: Small / medium series • Overall dimensions & Weight: Length: 2.20 m - Width: 1.25 m - Height: 1.45 m - Empty weight: 350 Kg - Alloy: 220 Kg • Electric Power: 16 kVa • Voltage: 3 x 380V + T + N The machine OCEANEdelivers outstanding performance, ideal for all production requirements. It is specially designed for prototypes, small and medium productions. THE'OCEANE integrates the spray fluxing module, preheating and an all titanium Wave Head with laminar nozzle and CMS. No restriction for maintenance. You can use a stainless steel spatula, vibrating sander etc…, or even perform a micro-blasting of the tank and the nozzles if you change the type of alloy without having to remove the warranty on the material. All the electrical and pneumatic equipment used in this machine is distributed in France. Dimensions: Length 2300 mm x width 1250 mm x Height 1700 mm Conveyor by stainless steel chain with automatic tension (maintenance-free) Conveying angle adjustable around 7 degrees Spray fluxer 9000 W medium wave infrared preheating cassette with stainless steel tunnel All titanium tin pot CMS + Laminar Titanium Brazing Nozzle Bath capacity 220 kg Programmable alloy bath heating HMI console with touch screen Industrial automaton
