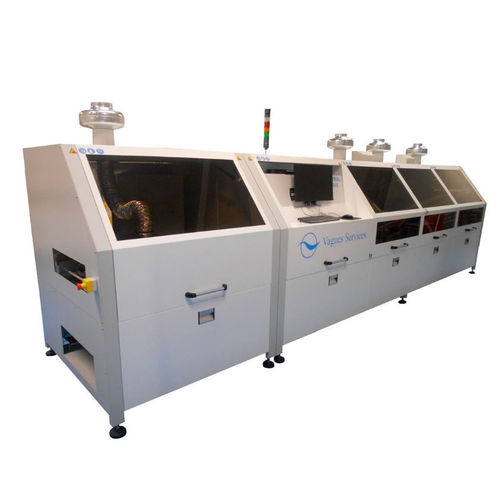

Wave brazing machine AUSTRAL WAVE
automaticfor medium-scale productionfor large-scale production

wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
wave brazing machine
Add to favorites
Compare this product


Characteristics

Technique
wave
Operating mode
automatic
Applications
for medium-scale production, for large-scale production, for PCB
Other characteristics
compact, in-line, electric

Description

• Nozzle width: 460 or 600 mm • PCB volume: Medium / large series • Overall dimensions & Weight: Length: 6.10 m - Width: 1.40 m - Height: 2m - Empty weight: 1 t 30 - Alloy: 525 Kg per pot • Electric Power: 83 kVa • Voltage: 3 x 400V + T + N The study and design of this wave soldering machine named AUSTRAL WAVE were developed with the aim of being able to produce with RoHS or Sn / Pb alloy without having to have 2 machines and to limit the operating costs of companies in the manufacture of electronic cards by means of: A user-friendly and easy-to-use interface for operators and technicians Easy disassembly and adjustment for maintenance work in a short time Exceptional brazing quality on single-layer and multi-layer circuits depending on the different finishes The society WAVES SERVICES commits to a 20 year warranty concerning the titanium tank, pipes and nozzles against RoHS alloy corrosion and also provides the nomenclature of all the electrical equipment distributed in France and the references of the suppliers. WAVES SERVICES ensures a 20-year durabilityon spare parts. No restriction for maintenance. You can use a stainless steel spatula, vibrating sander etc…, or even perform a micro-blasting of the tank and the nozzles if you change the type of alloy without having to withdraw your material warranty. 1 spray fluxer with 3 fluxing nozzles (option) and independent conveyor 1 Yellow Safety Cabinet for Storage of Flux Cans 1 Full titanium Wavehead for Lead Free Alloy 1 All-titanium Wavehead for Lead Alloy 1 stainless steel chain conveyor with automatic tension 2 Lower mid-wave infrared preheating 2 upper medium-wave infrared preheaters
