Static mixer SMB-H series

continuousfor liquidsfor the plastics industry

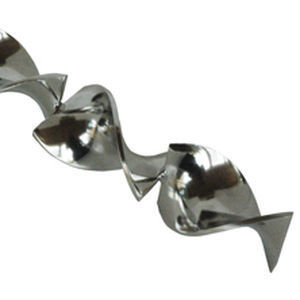

The SMB-H Helical static mixer design pioneered the static mixing industry and has been used as a viscous static mixer on extruders for over 37 years. The Helical design is considered a low mixing performance-long length-low pressure drop motionless mixer as compared to the later developments of high performance static mixers such as the SMB-R (Figure #2) and SMB-GX (Figures #3) which have become the technology standards in the industry. StaMixCo manufactures SMB-H static mixers in the traditional method of twisting a strip of metal and welding together as well and an advanced proprietary manufacturing technique where the entire unit it is machined from a solid rod of bar stock material without welding. This machining process allows for custom static mixer fabrication in virtually any L/D twist, in very small sizes, with very high strength, straight and true dimensioning and with a RMS 12 mirror polish surface finish which is a much improved surface finish as compared to the traditional 32 RMS finish for the twisted and welded design.
