Cut Pile tufting machine Myriad
Loop PileCut and Loop

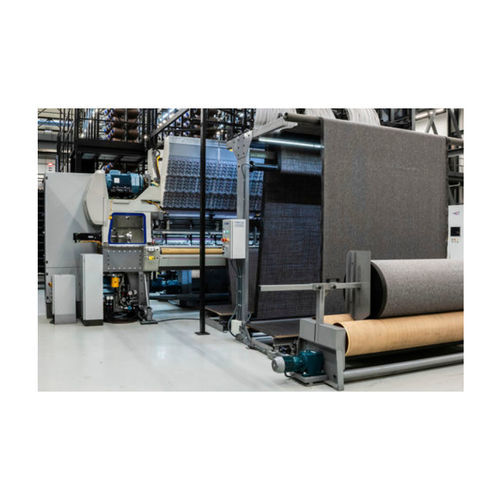

Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop
Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop
Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop - image - 2
Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop - image - 3
Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop - image - 4
Cut Pile tufting machine - Myriad - Vandewiele - Loop Pile / Cut and Loop - image - 5
Add to favorites
Compare this product

Characteristics

Type of tufting
Cut Pile, Loop Pile, Cut and Loop
Machine width

Max.: 5 m
(16'04" )

Min.: 2 m
(6'06" )

Pile height

Max.: 8 mm
(0 in)

Min.: 0 mm
(0 in)

Description

Overview
  • Designed for production of carpet tiles and loop-pile carpets
  • Individual pile delivery driven by servo motors for precise yarn feed
  • Quick pile-height changes to enable fast product changeovers
  • Unlimited design freedom across the full working width
  • Dynamic loop functionality for clean transitions between high and low pile at high speed
  • Compatible with a wide range of yarn types
  • Available working widths: 2 m, 4 m, 5 m
  • Energy management via energy bus to optimize consumption
  • Factory automation and Industry 4.0 ready with TEXconnect support


Key capabilities / USP
  • Full Design Loop — single or double sliding needle bar for complex loop patterns
  • Cut Loop — fixed configuration for cut-loop processes
  • Full Design Cut Loop — single sliding needle bar for combined cut & loop designs
  • High production speeds — up to 2500 RPM in loop pile with HST option


HST (high-speed tufting) features
  • Maximum speed up to 2500 RPM (loop pile)
  • Optimised for loop-pile carpet production
  • Pile height up to 8 mm with plain yarn feed plus IPD attachment
  • Individual looper drive where specified
  • Servo-controlled pressure foot for process stability
  • Available in 4 m working width


Myriad (IPD) performance
  • Maximum speed up to 2000 RPM
  • Pile height capability up to 3 mm


Technical specifications
  • Model name: Myriad (IPD)
  • Machine type: IPD (individual pile delivery)
  • Available working widths: 2 m, 4 m, 5 m
  • Pile delivery: individual pile delivery with servo motors
  • Pile height change: quick pile-height changes; dynamic loop capability for fast transitions
  • Yarn compatibility: suitable for a wide range of yarn types
  • Design modes: Full Design Loop / Cut Loop / Full Design Cut Loop options
  • Maximum speeds: up to 2000 RPM (Myriad), up to 2500 RPM with HST in loop pile
  • Pile height limits: up to 3 mm (Myriad), up to 8 mm with HST + IPD attachment
  • Drive & control: servo motors for pile delivery; individual looper drive (HST); servo-controlled pressure foot (HST)
  • Industry features: Industry 4.0 ready; TEXconnect enabled
  • Energy: energy bus for optimized energy management
  • Intended products: carpet tiles and loop-pile carpets
